铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A768EB127M1DLAS034CAP ALUM POLY 120UF 20% 20V SMD KEMET |
1,044 |
|
规格书 |
A768 | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 20 V | 34mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 65 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A758EK226M1EAAE050CAP ALUM POLY 22UF 20% 25V TH KEMET |
7,787 |
|
规格书 |
A758 | Bulk | Active | Polymer | 22 µF | ±20% | 25 V | 50mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
A750EQ567M1AAAE012CAP ALUM POLY 560UF 20% 10V TH KEMET |
3,955 |
|
规格书 |
A750 | Bulk | Active | Polymer | 560 µF | ±20% | 10 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.472" (12.00mm) | - | Through Hole |
|
A759BQ106M1VAAE090CAP ALUM POLY 10UF 20% 35V TH KEMET |
7,119 |
|
规格书 |
A759 | Bulk | Active | Polymer | 10 µF | ±20% | 35 V | 90mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 17 mA @ 120 Hz | 340 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole |
|

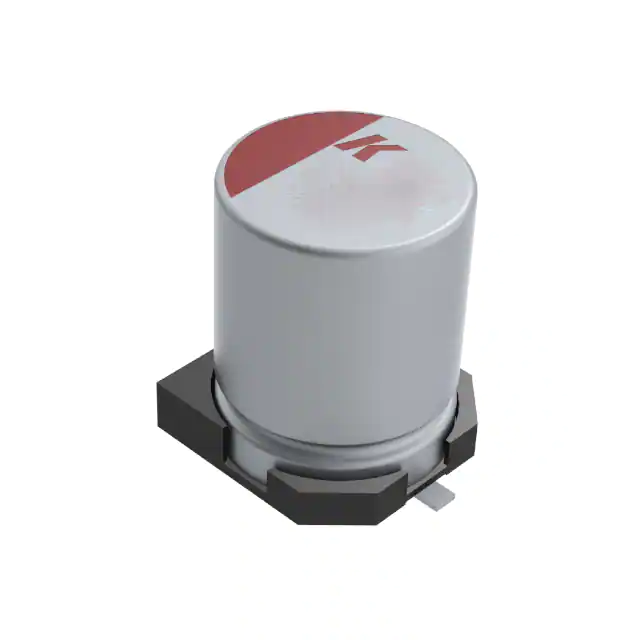

A765BC107M0JLAE025CAP ALUM POLY 100UF 20% 6.3V SMD KEMET |
9,989 |
|
规格书 |
A765 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.248" (6.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
A758KR477M1AAAE011CAP ALUM POLY 470UF 20% 10V TH KEMET |
7,616 |
|
规格书 |
A758 | Bulk | Active | Polymer | 470 µF | ±20% | 10 V | 11mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 255 mA @ 120 Hz | 5.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
A750KK477M1AAAE016CAP ALUM POLY 470UF 20% 10V TH KEMET |
3,906 |
|
规格书 |
A750 | Bulk | Active | Polymer | 470 µF | ±20% | 10 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
A758EK107M1AAAE016CAP ALUM POLY 100UF 20% 10V TH KEMET |
3,076 |
|
规格书 |
A758 | Bulk | Active | Polymer | 100 µF | ±20% | 10 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
A765EB227M0JLAE020CAP ALUM POLY 220UF 20% 6.3V SMD KEMET |
9,985 |
|
规格书 |
A765 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A765KG106M1ELAE035CAP ALUM POLY 10UF 20% 25V SMD KEMET |
6,186 |
|
规格书 |
A765 | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 25 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.287" (7.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
