交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSM06E18-P1JAC/DC WALL MOUNT ADAPTER 18V 6W |
153 |
|
规格书 |
GSM06E (6W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 18V | 330mA | 6 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | CEE 7/16 | - | 2.60" L x 1.26" W x 1.67" H (66.0mm x 32.0mm x 42.5mm) | CE, TUV |
|
PSAA20R-480L6AC/DC WALL MOUNT ADAPTER 48V 20W |
229 |
|
规格书 |
PSAA20R-L6 (20W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 48V | 420mA | 20 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.54" H (71.7mm x 50.0mm x 39.1mm) | CB, CE, cULus |
|
SWI18-24-N-P5AC/DC WALL MOUNT ADAPTER 24V 19W |
0 |
|
规格书 |
SWI18-N (18W) | Tray | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 800mA | 19 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 2.05" H (72.0mm x 34.0mm x 52.0mm) | CB Scheme, CCC, CSA, FCC, IEC, PSE, UL |
|
CENB1010A2403F01AC/DC DESKTOP ADAPTER 24V 12W |
0 |
|
规格书 |
CENB1010 (10W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 500mA | 12 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.31" L x 1.85" W x 1.27" H (84.0mm x 47.0mm x 32.3mm) | CE, cULus |
|
SWI18-12-E-P5RAC/DC WALL MOUNT ADAPTER 12V 19W |
0 |
|
规格书 |
SWI18-E (18W) | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 600mA | 19 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 2.83" L x 1.34" W x 2.76" H (72.0mm x 34.0mm x 70.0mm) | CB Scheme, EN, IEC |
|
SDI12-18-UD-P5AC/DC DESKTOP ADAPTER 18V 12W |
0 |
|
规格书 |
SDI12-UD (12W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 660mA | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 2.95" L x 1.89" W x 1.18" H (75.0mm x 48.0mm x 30.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDI12-15-UD-P5AC/DC DESKTOP ADAPTER 15V 12W |
0 |
|
规格书 |
SDI12-UD (12W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 800mA | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 2.95" L x 1.89" W x 1.18" H (75.0mm x 48.0mm x 30.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDI12-24-UD-P6AC/DC DESKTOP ADAPTER 24V 12W |
0 |
|
规格书 |
SDI12-UD (12W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 500mA | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 2.95" L x 1.89" W x 1.18" H (75.0mm x 48.0mm x 30.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDI12-24-UD-P5AC/DC DESKTOP ADAPTER 24V 12W |
0 |
|
规格书 |
SDI12-UD (12W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 500mA | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 2.95" L x 1.89" W x 1.18" H (75.0mm x 48.0mm x 30.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
SWM12-5-EH-P5AC/DC WALL MOUNT ADAPTER 5V 12W |
0 |
|
规格书 |
SWM12-E (12W) | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 100mW (Max) | Positive Center | Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 2.17" L x 0.98" W x 1.44" H (55.0mm x 25.0mm x 36.7mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, TUV, UL |
|
SWM12-5-EV-P5AC/DC WALL MOUNT ADAPTER 5V 12W |
0 |
|
规格书 |
SWM12-E (12W) | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 100mW (Max) | Positive Center | Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 2.11" L x 1.62" W x 1.11" H (53.5mm x 41.2mm x 28.2mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, TUV, UL |
|
PSAC30U-240L6AC/DC DESKTOP ADAPTER 24V 30W |
451 |
|
规格书 |
PSAC30U (30W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.25A | 30 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C14 | - | 4.07" L x 1.65" W x 1.13" H (103.4mm x 42.0mm x 28.7mm) | CE, cULus |
|

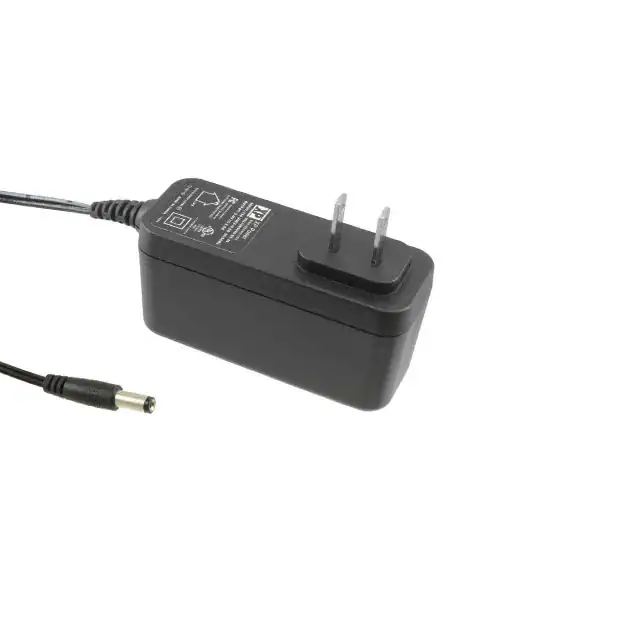

VEL18US090-US-JAAC/DC WALL MOUNT ADAPTER 9V 18W |
4,154 |
|
规格书 |
VEL18 (18W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 2A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | NEMA 1-15P | - | 3.54" L x 1.34" W x 1.87" H (90.0mm x 34.0mm x 47.5mm) | CB, TUV, UL |
|
|
VEL18US120-US-JAAC/DC WALL MOUNT ADAPTER 12V 18W |
289 |
|
规格书 |
VEL18 (18W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1.5A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | NEMA 1-15P | - | 3.54" L x 1.34" W x 1.87" H (90.0mm x 34.0mm x 47.5mm) | CB, TUV, UL |
|

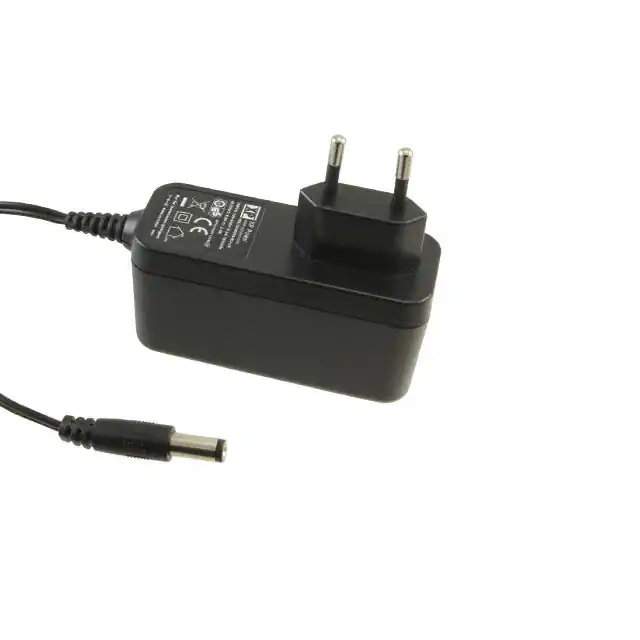

VEL18US120-EU-JAAC/DC WALL MOUNT ADAPTER 12V 18W |
147 |
|
规格书 |
VEL18 (18W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1.5A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | CEE 7/16 | - | 3.54" L x 1.34" W x 2.26" H (90.0mm x 34.0mm x 57.6mm) | CB, TUV, UL |
|
GS06E-8P1JAC/DC WALL MOUNT ADAPTER 48V 6W |
158 |
|
规格书 |
GS06E (6W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 125mA | 6 W | 75mW (Max) | Positive Center | - | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 2.60" L x 1.26" W x 1.67" H (66.0mm x 32.0mm x 42.5mm) | CE, GS |
|
RAS-PWR03-PIAC/DC WALL MOUNT ADAPTER 5V |
1,455 |
|
规格书 |
- | Retail Package | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 2.5A | - | - | - | - | Level VI | - | USB Micro | 47.2" (1.20m) | NEMA 1-15P | - | 5.00" L x 1.50" W x 2.50" H (127.0mm x 38.1mm x 63.5mm) | FCC, UL |
|
SMI18-12-K-P5RAC/DC WALL MOUNT ADAPTER 12V 19W |
0 |
|
规格书 |
SMI18 (18W) | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1.6A | 19 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm) | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL |
|
|
SMI18-12-K-P6AC/DC WALL MOUNT ADAPTER 12V 19W |
0 |
|
规格书 |
SMI18 (18W) | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1.6A | 19 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm) | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL |
|
|
SMI18-18-K-P5AC/DC WALL MOUNT ADAPTER 18V 20W |
0 |
|
规格书 |
SMI18 (18W) | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 1.1A | 20 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm) | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL |
