交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MTE175-48SX-F-W6AC-DC MEDICAL EXTERNAL FANLESS ETA-USA |
9 |
|
规格书 |
- | Bulk | Active | International | Desktop, Wall Mount (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 3.65A | 175 W | 150mW (Max) | - | Medical | 89% | -20°C ~ 60°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.73" H (170.0mm x 85.0mm x 44.0mm) | CE, EN, IEC, UL |
|
|
MTE175-12SX-F-W6AC-DC MEDICAL EXTERNAL FANLESS ETA-USA |
6 |
|
规格书 |
- | Bulk | Active | International | Desktop, Wall Mount (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 14.17A | 170 W | 150mW (Max) | - | Medical | 89% | -20°C ~ 60°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.73" H (170.0mm x 85.0mm x 44.0mm) | CE, EN, IEC, UL |
|
|
MTE175-24SX-F-W6AC-DC MEDICAL EXTERNAL FANLESS ETA-USA |
6 |
|
规格书 |
- | Bulk | Active | International | Desktop, Wall Mount (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 7.3A | 175 W | 150mW (Max) | - | Medical | 89% | -20°C ~ 60°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.73" H (170.0mm x 85.0mm x 44.0mm) | CB, CE, TUV, UL |
|
|
MTE175-28SX-F-W6AC-DC MEDICAL EXTERNAL FANLESS ETA-USA |
3 |
|
规格书 |
- | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 28V | 6.25A | 175 W | 150mW (Max) | - | Medical | 89% | -20°C ~ 60°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.73" H (170.0mm x 85.0mm x 44.0mm) | CE, EN, IEC, UL |
|
|
MTE175-19SX-F-W6AC-DC MEDICAL EXTERNAL FANLESS ETA-USA |
2 |
|
规格书 |
- | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 9.22A | 175 W | 150mW (Max) | - | Medical | 89% | -20°C ~ 60°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.73" H (170.0mm x 85.0mm x 44.0mm) | CB, CE, TUV, UL |
|
|
MTE175-15SX-F-W6AC-DC MEDICAL EXTERNAL FANLESS ETA-USA |
2 |
|
规格书 |
- | Bulk | Active | International | Desktop, Wall Mount (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 11.67A | 175 W | 150mW (Max) | - | Medical | 89% | -20°C ~ 60°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.73" H (170.0mm x 85.0mm x 44.0mm) | CE, CSA, TUV, UL |
|
|
MTE175-36SX-F-W6AC-DC MEDICAL EXTERNAL FANLESS ETA-USA |
2 |
|
规格书 |
- | Bulk | Active | International | Desktop, Wall Mount (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 36V | 4.87A | 175 W | 150mW (Max) | - | Medical | 89% | -20°C ~ 60°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.73" H (170.0mm x 85.0mm x 44.0mm) | CE, EN, IEC, UL |
|

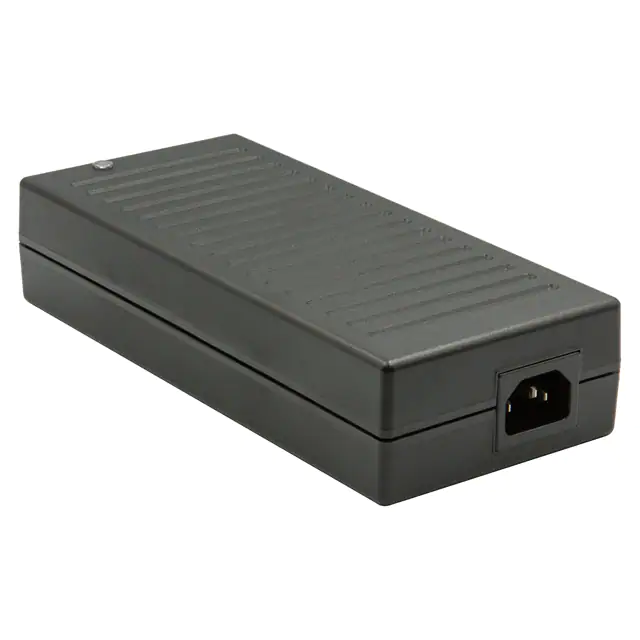

DTE180-03X-F-W6AC/DC DESKTOP 5V, +12V,-12V 18 ETA-USA |
7 |
|
规格书 |
- | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 12V, -12V | 15A, 14A, 1A | 255 W | 300mW | - | ITE (Commercial) | 86% | -20°C ~ 60°C | Rectangular, 10 Position | - | IEC 320-C14 | - | 7.87" L x 3.54" W x 1.77" H (200.0mm x 90.0mm x 45.0mm) | CB, CE, cUL, FCC, TUV, UL |
|

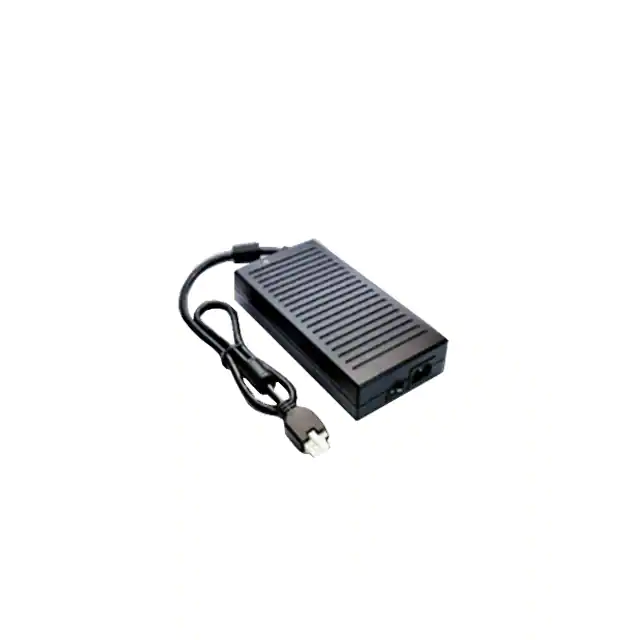

DTMF300-48SX-F-W6AC/DC DESKTOP ADAPTER 48V 300W ETA-USA |
18 |
|
规格书 |
- | Bulk | Active | International | Desktop (Class I), Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 6.25A | 300 W | 500mW (Max) | - | ITE (Commercial), Medical | Level VI | 0°C ~ 60°C | Rectangular, 10 Position | 31.5" (0.8m) | IEC 320-C14, IEC 320-C18 | - | 8.74" L x 4.41" W x 1.77" H (222.0mm x 112.0mm x 45.0mm) | CCC, CE, TUV, UL |
|
DTMF300-54SX-F-W6AC/DC DESKTOP ADAPTER 54V 300W ETA-USA |
16 |
|
规格书 |
- | Bulk | Active | International | Desktop (Class I), Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 54V | 5.56A | 300 W | 500mW (Max) | - | ITE (Commercial), Medical | Level VI | 0°C ~ 60°C | Rectangular, 10 Position | 31.5" (0.8m) | IEC 320-C14, IEC 320-C18 | - | 8.74" L x 4.41" W x 1.77" H (222.0mm x 112.0mm x 45.0mm) | CCC, CE, TUV, UL |
