交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

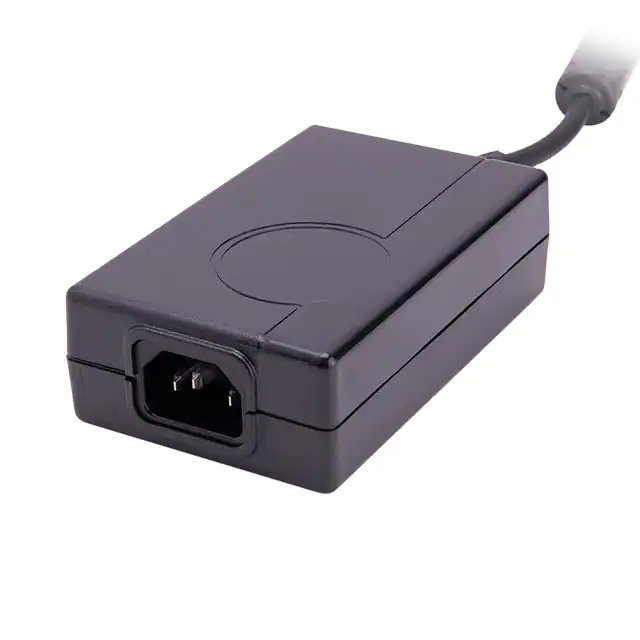

TE60A1603F01AC/DC DESKTOP ADAPTER 16V 60W |
0 |
|
规格书 |
TE60 (60W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 16V | 3.75A | 60 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 45.3" (1.15m) | IEC 320-C14 | - | 4.25" L x 2.67" W x 1.29" H (108.0mm x 67.9mm x 32.7mm) | CB, CE, CSA, UL |
|

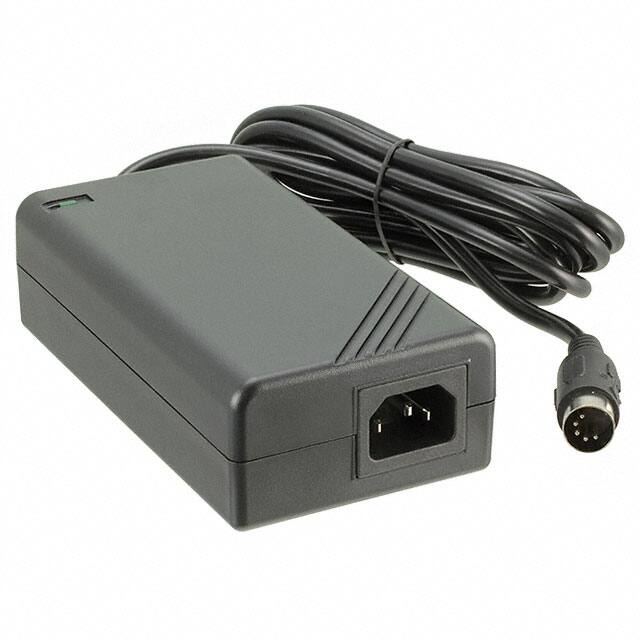

76000694AC/DC ADPT PSII 120V-240V 1=4PCS |
0 |
|
- |
- | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

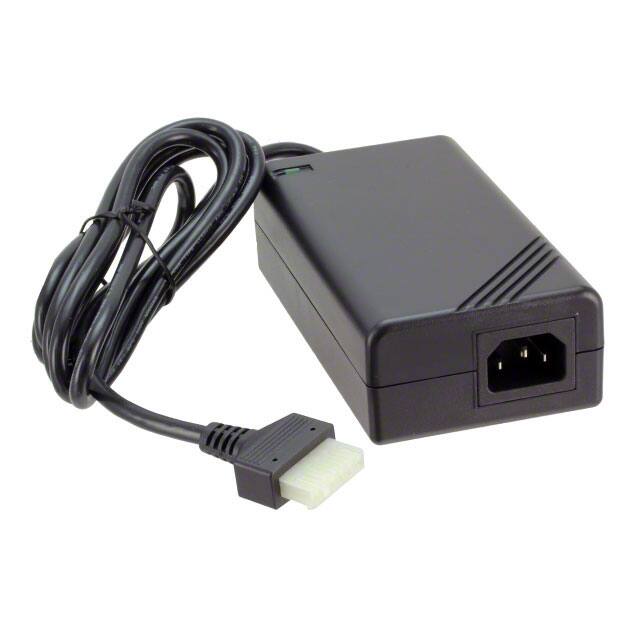

76000914AC/DC DSKTP ADAPTER 5V +/-12 43W |
0 |
|
规格书 |
- | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 254 VAC | 5V, 12V, -12V | 5A, 1A, 500mA | 43 W | - | - | ITE (Commercial) | 75% | 0°C ~ 40°C | - | 72" (1.83m) | IEC 320-C14 | - | 5.51" L x 2.95" W x 1.61" H (140.0mm x 75.0mm x 41.0mm) | CE, PSE, UL |
|

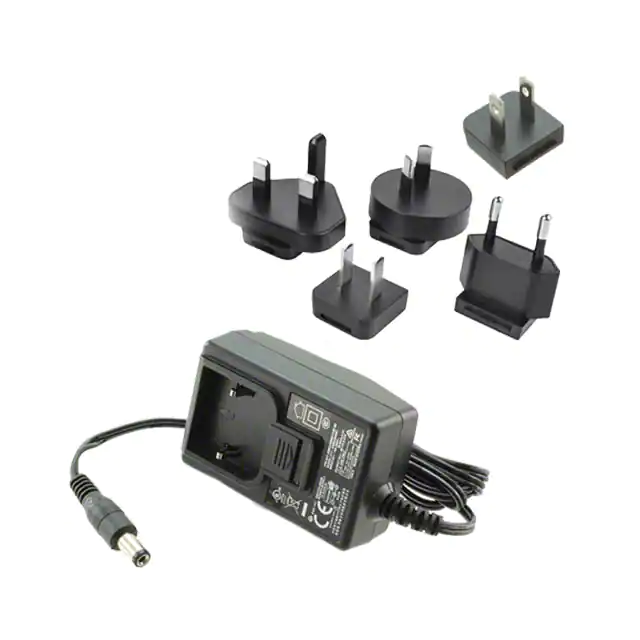

SMI6-5-V-P5AC/DC WALL MOUNT ADAPTER 5V 6W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 1.2A | 6 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-5-V-P6AC/DC WALL MOUNT ADAPTER 5V 6W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 1.2A | 6 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-12-V-P5AC/DC WALL MOUNT ADAPTER 12V 6W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 500mA | 6 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-12-V-P6AC/DC WALL MOUNT ADAPTER 12V 6W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 500mA | 6 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-9-V-P5AC/DC WALL MOUNT ADAPTER 9V 6W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 670mA | 6 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
SMI6-5-K-P5RAC/DC WALL MOUNT ADAPTER 5V 6W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1.2A | 6 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-5-K-P6AC/DC WALL MOUNT ADAPTER 5V 6W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1.2A | 6 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-5-K-P6RAC/DC WALL MOUNT ADAPTER 5V 6W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1.2A | 6 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-5.95-K-P5RAC/DC WALL MNT ADAPTER 5.9V 5.9W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5.9V | 1A | 5.9 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-5.95-V-P5RAC/DC WALL MNT ADAPTER 5.9V 5.9W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5.9V | 1A | 5.9 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-5.95-K-P5AC/DC WALL MNT ADAPTER 5.9V 5.9W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5.9V | 1A | 5.9 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-5.95-V-P6AC/DC WALL MNT ADAPTER 5.9V 5.9W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5.9V | 1A | 5.9 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-5.95-K-P6AC/DC WALL MNT ADAPTER 5.9V 5.9W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5.9V | 1A | 5.9 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-5.95-V-P6RAC/DC WALL MNT ADAPTER 5.9V 5.9W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5.9V | 1A | 5.9 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-5.95-K-P6RAC/DC WALL MNT ADAPTER 5.9V 5.9W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5.9V | 1A | 5.9 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-9-K-P5RAC/DC WALL MOUNT ADAPTER 9V 6W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 670mA | 6 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
|
|
SMI6-9-K-P6AC/DC WALL MOUNT ADAPTER 9V 6W |
0 |
|
规格书 |
SMI6 (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 670mA | 6 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL |
