交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCH3-050EU-0005AC/DC WALL MOUNT ADAPTER 5V 2.8W |
0 |
|
规格书 |
DCH3 (3W) | Bulk | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 550mA | 2.8 W | - | - | ITE (Commercial) | Level V | 0°C ~ 45°C | USB Mini | 59" (1.50m) | CEE 7/16 | - | 2.45" L x 1.07" W x 1.79" H (58.0mm x 26.1mm x 45.8mm) | CB, CE |
|

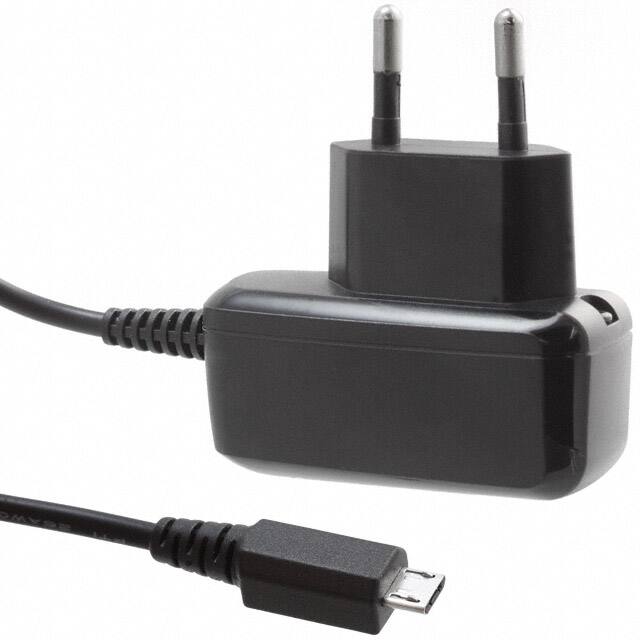

DCH3-050EU-0006AC/DC WALL MOUNT ADAPTER 5V 2.8W |
0 |
|
规格书 |
DCH3 (3W) | Bulk | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 550mA | 2.8 W | - | - | ITE (Commercial) | Level V | 0°C ~ 45°C | USB Micro | 59" (1.50m) | CEE 7/16 | - | 2.45" L x 1.07" W x 1.79" H (58.0mm x 26.1mm x 45.8mm) | CB, CE |
|

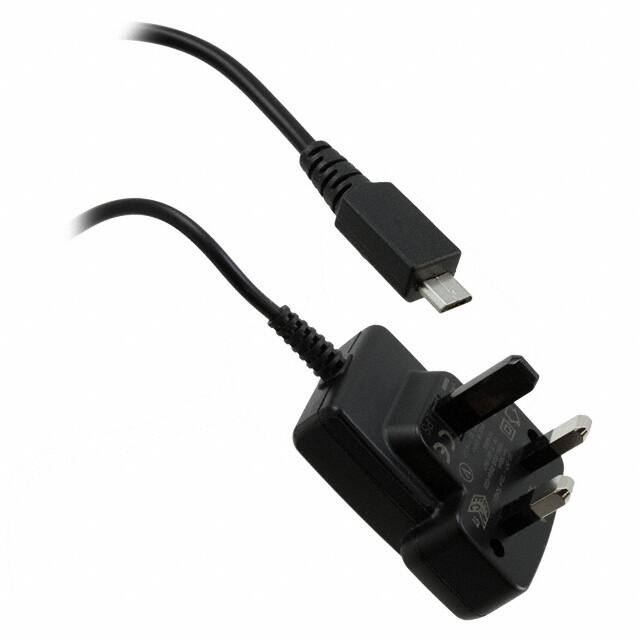

DCH3-050UK-0006AC/DC WALL MOUNT ADAPTER 5V 2.8W |
0 |
|
- |
DCH3 (3W) | Bulk | Obsolete | United Kingdom | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 550mA | 2.8 W | - | - | ITE (Commercial) | Level V | 0°C ~ 45°C | USB Micro | 59" (1.50m) | BS 1363 | - | 2.28" L x 2.02" W x 0.91" H (57.9mm x 51.2mm x 23.0mm) | CB, CE |
|

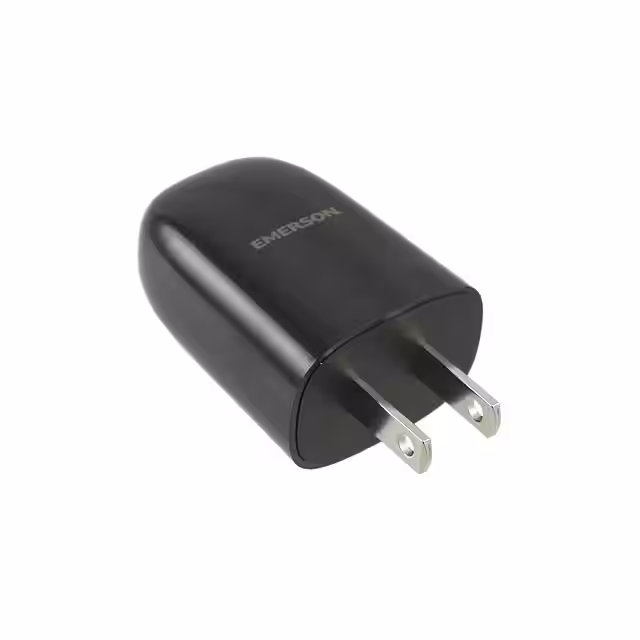

DCH5-050USAC/DC WALL MOUNT ADAPTER 5V 5W |
0 |
|
- |
DCH5 (5W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 40°C | USB A Receptacle | - | NEMA 1-15P | - | 1.00" L x 1.40" W x 1.88" H (25.5mm x 35.6mm x 47.9mm) | CE |
|

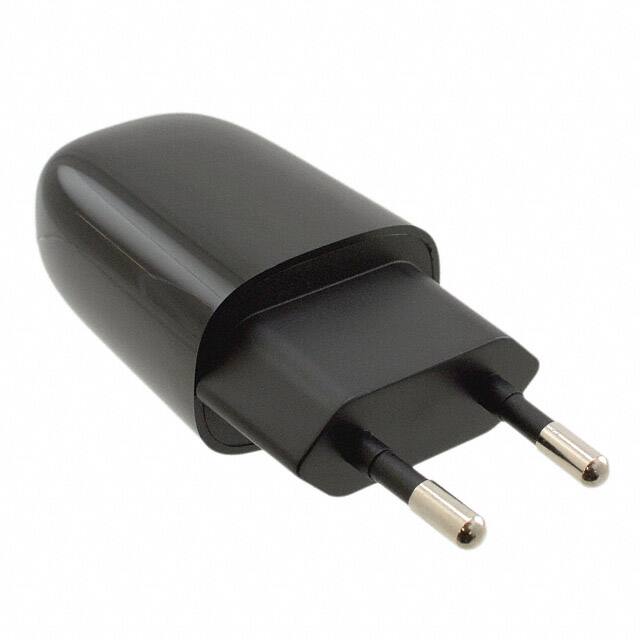

DCH5-050EUAC/DC WALL MOUNT ADAPTER 5V 5W |
0 |
|
- |
DCH5 (5W) | Bulk | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 40°C | USB A Receptacle | - | CEE 7/16 | - | 1.00" L x 1.40" W x 2.61" H (25.5mm x 35.6mm x 66.2mm) | CE |
|

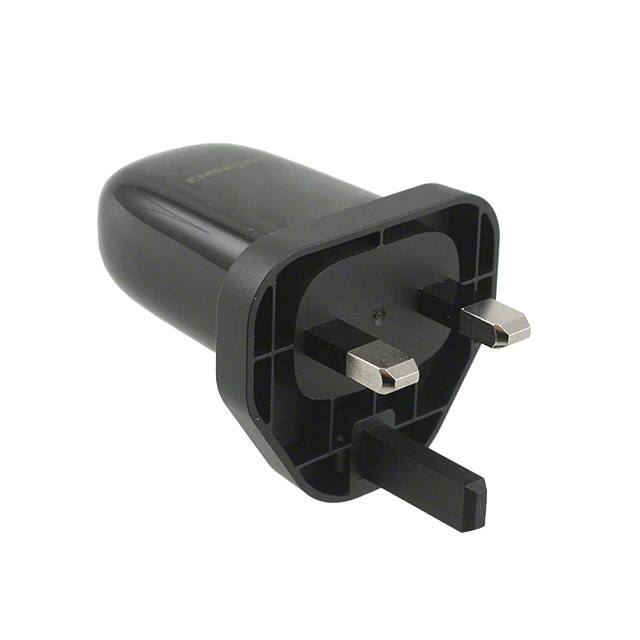

DCH5-050UKAC/DC WALL MOUNT ADAPTER 5V 5W |
0 |
|
- |
DCH5 (5W) | Bulk | Obsolete | United Kingdom | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 40°C | USB A Receptacle | - | BS 1363 | - | 1.74" L x 1.95" W x 2.19" H (44.2mm x 49.5mm x 55.7mm) | CE |
|

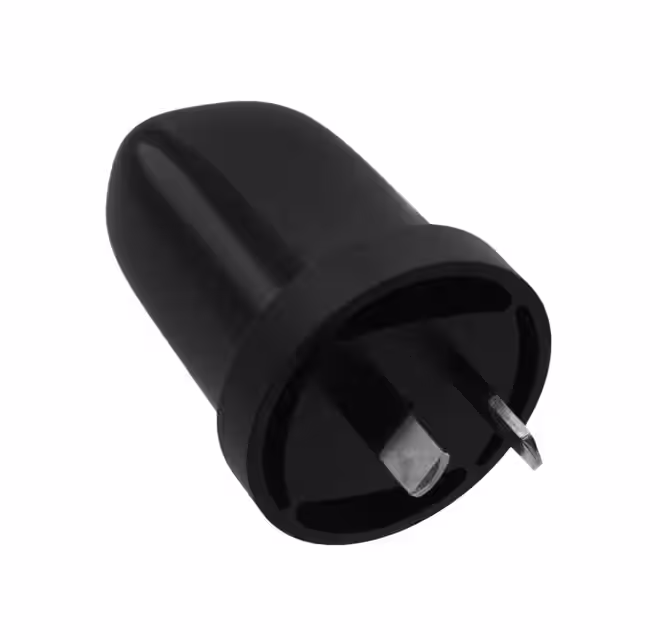

DCH5-050AUAC/DC WALL MOUNT ADAPTER 5V 5W |
0 |
|
- |
DCH5 (5W) | Bulk | Obsolete | Australia | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 40°C | USB A Receptacle | - | AS 3112 | - | 1.63" L x 1.63" W x 2.24" H (41.4mm x 41.4mm x 56.9mm) | CE |
|

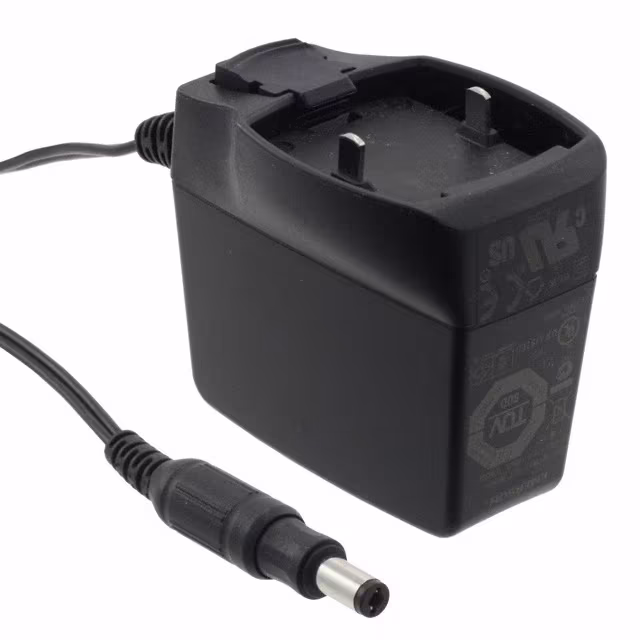

DA12-120MP-M2.1AC/DC WALL MOUNT ADAPTER 12V 12W |
0 |
|
规格书 |
DA12-M (12W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1A | 12 W | - | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.36" L x 1.58" W x 2.06" H (60.0mm x 40.2mm x 52.2mm) | CB, CE |
|
FWC100012A-12BAC/DC DESKTOP ADAPTER 12V 100W |
0 |
|
规格书 |
ELPAC FWC100 (100W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 12V | 8.3A | 100 W | 200mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | DIN, 8 Pin | 48" (1.22m) | IEC 320-C14 | - | 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm) | CB, CE, cTUVus |
|
|
FWC100015A-12BAC/DC DESKTOP ADAPTER 15V 99W |
0 |
|
规格书 |
ELPAC FWC100 (100W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 15V | 6.6A | 99 W | 200mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | DIN, 8 Pin | 48" (1.22m) | IEC 320-C14 | - | 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm) | CB, CE, cTUVus |
|
|
FWC100018A-11BAC/DC DESKTOP ADAPTER 18V 99W |
0 |
|
规格书 |
ELPAC FWC100 (100W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 18V | 5.5A | 99 W | 200mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm) | CB, CE, cTUVus |
|
|
FWC100024A-11BAC/DC DESKTOP ADAPTER 24V 98W |
0 |
|
规格书 |
ELPAC FWC100 (100W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 24V | 4.1A | 98 W | 200mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm) | CB, CE, cTUVus |
|
|
FWC100048A-11BAC/DC DESKTOP ADAPTER 48V 96W |
0 |
|
规格书 |
ELPAC FWC100 (100W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 48V | 2A | 96 W | 200mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C14 | - | 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm) | CB, CE, cTUVus |
|

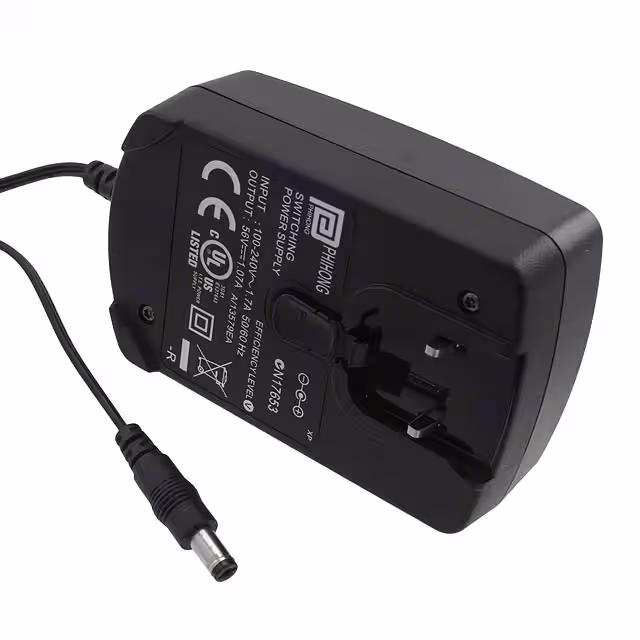

PSA60R-120-RAC/DC WALL MOUNT ADAPTER 12V 60W |
0 |
|
规格书 |
PSA60R (60W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 49.21" (1.25m) | Multi-Blade | - | 4.06" L x 2.59" W x 1.57" H (103.0mm x 66.0mm x 39.9mm) | CE, cULus |
|
|
PSA60R-240-RAC/DC WALL MOUNT ADAPTER 24V 60W |
0 |
|
规格书 |
PSA60R (60W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 2.5A | 60 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 4.06" L x 2.59" W x 1.57" H (103.0mm x 66.0mm x 39.9mm) | CE, cULus |
|
KTPS05-03315UAC/DC WALL MOUNT ADAPTER 3.3V 5W |
0 |
|
规格书 |
KTPS05 (5W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 3.3V | 1.5A | 5 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.05" L x 1.14" W x 1.81" H (52.0mm x 29.0mm x 46.0mm) | IEC |
|
|
KTPS05-05015UAC/DC WALL MOUNT ADAPTER 5V 7.5W |
0 |
|
规格书 |
KTPS05 (5W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 1.5A | 7.5 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.05" L x 1.14" W x 1.81" H (52.0mm x 28.9mm x 46.0mm) | IEC |
|
|
KTPS05-09006UAC/DC WALL MOUNT ADAPTER 9V 5.4W |
0 |
|
规格书 |
KTPS05 (5W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 9V | 600mA | 5.4 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.05" L x 1.14" W x 1.81" H (52.0mm x 29.0mm x 46.0mm) | IEC |
|
|
KTPS05-12006UAC/DC WALL MNT ADAPTER 12V 7.2W |
0 |
|
规格书 |
KTPS05 (5W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 12V | 600mA | 7.2 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.05" L x 1.14" W x 1.81" H (52.0mm x 29.0mm x 46.0mm) | IEC |
|
|
KTPS05-07510UAC/DC WALL MNT ADAPTER 7.5V 7.5W |
0 |
|
规格书 |
KTPS05 (5W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 7.5V | 1A | 7.5 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.05" L x 1.14" W x 1.81" H (52.0mm x 29.0mm x 46.0mm) | IEC |
