交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPS120125UH-P5P-SZAC/DC WALL MOUNT ADAPTER 12V 15W |
0 |
|
规格书 |
EPS (15W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1.25A | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 2.83" L x 1.38" W x 1.87" H (72.0mm x 35.0mm x 47.6mm) | - |
|
|
EPS150100UH-P5P-SZAC/DC WALL MOUNT ADAPTER 15V 15W |
0 |
|
规格书 |
EPS (15W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1A | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 2.83" L x 1.38" W x 1.87" H (72.0mm x 35.0mm x 47.6mm) | - |
|
|
EPS240063UH-P5P-SZAC/DC WALL MOUNT ADAPTER 24V 15W |
0 |
|
规格书 |
EPS (15W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 630mA | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 2.83" L x 1.38" W x 1.87" H (72.0mm x 35.0mm x 47.6mm) | - |
|

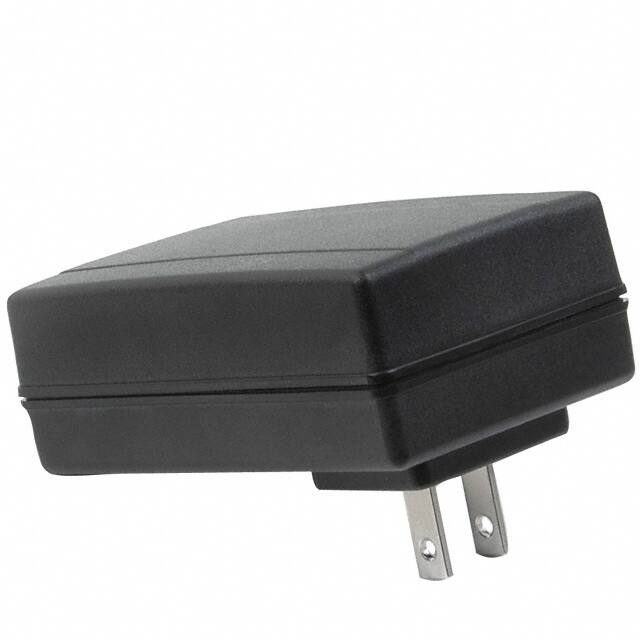

EPS050400U-P5P-KHAC/DC WALL MOUNT ADAPTER 5V 20W |
0 |
|
规格书 |
WALL PLUG (24W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 4A | 20 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.39" L x 2.20" W x 1.28" H (86.0mm x 56.0mm x 32.5mm) | CE, cULus, TUVgs |
|
EPS120200U-P5P-KHAC/DC WALL MOUNT ADAPTER 12V 24W |
0 |
|
规格书 |
WALL PLUG (24W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 2A | 24 W | - | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.39" L x 2.20" W x 1.28" H (86.0mm x 56.0mm x 32.5mm) | - |
|
|
EPS150160U-P5P-KHAC/DC WALL MOUNT ADAPTER 15V 24W |
0 |
|
规格书 |
WALL PLUG (24W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1.6A | 24 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.39" L x 2.20" W x 1.28" H (86.0mm x 56.0mm x 32.5mm) | cULus |
|
|
EPS240100U-P5P-KHAC/DC WALL MOUNT ADAPTER 24V 24W |
0 |
|
规格书 |
WALL PLUG (24W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1A | 24 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.39" L x 2.20" W x 1.28" H (86.0mm x 56.0mm x 32.5mm) | cULus |
|
MW4009-760F-NC-BKAC/DC DESKTOP ADAPTER 9V 40W |
0 |
|
规格书 |
MW40 (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 9V | 4.4A | 40 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
MW4009-760F-NC-WHAC/DC DESKTOP ADAPTER 9V 40W |
0 |
|
规格书 |
MW40 (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 9V | 4.4A | 40 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
|
MW4012-760F-NC-BKAC/DC DESKTOP ADAPTER 12V 40W |
0 |
|
规格书 |
MW40 (40W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 3.3A | 40 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
|
MW4015-760F-NC-BKAC/DC DESKTOP ADAPTER 15V 41W |
0 |
|
规格书 |
MW40 (40W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 15V | 2.7A | 41 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
|
MW4018-760F-NC-BKAC/DC DESKTOP ADAPTER 18V 40W |
0 |
|
规格书 |
MW40 (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 18V | 2.2A | 40 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
|
MW4024-760F-NC-BKAC/DC DESKTOP ADAPTER 24V 41W |
0 |
|
规格书 |
MW40 (40W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 1.7A | 41 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
|
MW4012-760F-NC-WHAC/DC DESKTOP ADAPTER 12V 40W |
0 |
|
规格书 |
MW40 (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 3.3A | 40 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
|
MW4015-760F-NC-WHAC/DC DESKTOP ADAPTER 15V 41W |
0 |
|
规格书 |
MW40 (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 15V | 2.7A | 41 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
|
MW4018-760F-NC-WHAC/DC DESKTOP ADAPTER 18V 40W |
0 |
|
规格书 |
MW40 (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 18V | 2.2A | 40 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
|
MW4024-760F-NC-WHAC/DC DESKTOP ADAPTER 24V 41W |
0 |
|
规格书 |
MW40 (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 1.7A | 41 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60" (1.52m) | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
PW300MA0012F01AC/DC DSKTP ADAPTER 5V +/-12 50W |
0 |
|
规格书 |
PW300 (50W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 5V, 12V, -12V | 5A, 4A, 500mA | 50 W | 500mW (Max) | - | ITE (Commercial) | 75% | 0°C ~ 50°C | DIN, 5 Pin | 36" (0.91m) | IEC 320-C14 | - | 5.87" L x 3.34" W x 2.00" H (149.0mm x 86.0mm x 51.0mm) | CE |
|
SW201MA0012F01AC/DC DESKTOP ADAPTER 5V/12V 32W |
0 |
|
规格书 |
SW201 (25W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 250 VAC | 5V, 12V | 4A, 1A | 32 W | - | - | ITE (Commercial) | 72% | 0°C ~ 50°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.08" L x 3.05" W x 1.59" H (129.0mm x 77.5mm x 40.5mm) | CE |
|
SW301MA0012F01AC/DC DSKTP ADAPTER 5V +/-12 39W |
0 |
|
规格书 |
SW301 (25W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 250 VAC | 5V, 12V, -12V | 4A, 1A, 600mA | 39 W | - | - | ITE (Commercial) | 72% | 0°C ~ 50°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.08" L x 3.05" W x 1.59" H (129.0mm x 77.5mm x 40.5mm) | CE |
