交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI160G-24-U2-P51AC/DC DESKTOP ADAPTER 24V 158W |
0 |
|
规格书 |
GaN, SDI160G-U (160W) | Box | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 6.6A | 158 W | 150mW (Max) | - | ITE (Commercial) | 90% | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
|
SDI160G-56-UC-P51AC/DC DESKTOP ADAPTER 56V 160W |
0 |
|
规格书 |
GaN, SDI160G-U (160W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 56V | 2.86A | 160 W | 150mW (Max) | - | ITE (Commercial) | 90% | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
SDI160G-12-UD2-P51AC/DC DESKTOP ADAPTER 12V 150W |
0 |
|
规格书 |
GaN, SDI160G-UD (160W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 12.5A | 150 W | 150mW (Max) | - | ITE (Commercial) | 90% | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI160G-48-UDC-P51AC/DC DESKTOP ADAPTER 48V 158W |
0 |
|
规格书 |
GaN, SDI160G-UD (160W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 48V | 3.3A | 158 W | 150mW (Max) | - | ITE (Commercial) | 90% | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI160G-19-UD2-P51AC/DC DESKTOP ADAPTER 19V 160W |
0 |
|
规格书 |
GaN, SDI160G-UD (160W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 19V | 8.4A | 160 W | 150mW (Max) | - | ITE (Commercial) | 90% | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI160G-19-UD-P51AC/DC DESKTOP ADAPTER 19V 160W |
0 |
|
规格书 |
GaN, SDI160G-UD (160W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 8.4A | 160 W | 150mW (Max) | - | ITE (Commercial) | 90% | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI160G-12-U2-P51AC/DC DESKTOP ADAPTER 12V 150W |
0 |
|
规格书 |
GaN, SDI160G-U (160W) | Box | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 12.5A | 150 W | 150mW (Max) | - | ITE (Commercial) | 90% | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
|
SDI160G-24-UD2-P51AC/DC DESKTOP ADAPTER 24V 158W |
0 |
|
规格书 |
GaN, SDI160G-UD (160W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 6.6A | 158 W | 150mW (Max) | - | ITE (Commercial) | 90% | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI160G-12-UDC-P51AC/DC DESKTOP ADAPTER 12V 150W |
0 |
|
规格书 |
GaN, SDI160G-UD (160W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 12.5A | 150 W | 150mW (Max) | - | ITE (Commercial) | 90% | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI160G-56-UD-P51AC/DC DESKTOP ADAPTER 56V 160W |
0 |
|
规格书 |
GaN, SDI160G-UD (160W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 2.86A | 160 W | 150mW (Max) | - | ITE (Commercial) | 90% | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.91" L x 2.13" W x 1.30" H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI160G-19-U2-P51AC/DC DESKTOP ADAPTER 19V 160W |
0 |
|
规格书 |
GaN, SDI160G-U (160W) | Box | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 19V | 8.4A | 160 W | 150mW (Max) | - | ITE (Commercial) | 90% | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
GE150A1851N01AC/DC DESKTOP ADAPTER 18V 145W |
0 |
|
规格书 |
GE150 (150W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 18V | 8.33A | 145 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 50°C | Rectangular, 6 Position | 45.9" (1.17m) | IEC 320-C8 | - | 6.46" L x 2.83" W x 1.46" H (164.1mm x 71.9mm x 37.1mm) | CE, cULus, UL |
|
|
GE150A4851N01AC/DC DESKTOP ADAPTER 48V 150W |
0 |
|
规格书 |
GE150 (150W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 48V | 3.2A | 150 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 50°C | Rectangular, 6 Position | 45.9" (1.17m) | IEC 320-C8 | - | 6.46" L x 2.83" W x 1.46" H (164.1mm x 71.9mm x 37.1mm) | CE, cULus, UL |
|
|
GE150A4851F01AC/DC DESKTOP ADAPTER 48V 150W |
0 |
|
规格书 |
GE150 (150W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 48V | 3.13A | 150 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 50°C | Rectangular, 6 Position | 45.9" (1.17m) | IEC 320-C14 | - | 6.46" L x 2.83" W x 1.46" H (164.1mm x 71.9mm x 37.1mm) | CE, cULus, UL |
|
|
GE150A1551N01AC/DC DESKTOP ADAPTER 15V 145W |
0 |
|
规格书 |
GE150 (150W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 15V | 10A | 145 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 50°C | Rectangular, 6 Position | 45.9" (1.17m) | IEC 320-C8 | - | 6.46" L x 2.83" W x 1.46" H (164.1mm x 71.9mm x 37.1mm) | CE, cULus, UL |
|
|

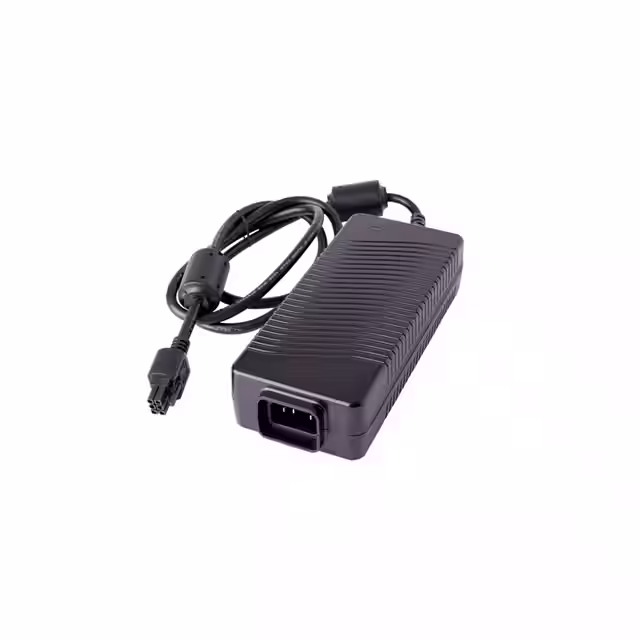

GE150A2451N01AC/DC DESKTOP ADAPTER 24V 150W |
0 |
|
规格书 |
GE150 (150W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 6.25A | 150 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 50°C | Rectangular, 6 Position | 45.9" (1.17m) | IEC 320-C8 | - | 6.46" L x 2.83" W x 1.46" H (164.1mm x 71.9mm x 37.1mm) | CE, cULus, UL |
|
SDI250-19-U-P219AC/DC DESKTOP ADAPTER 19V 251W |
0 |
|
规格书 |
SDI250-U (250W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 13.2A | 251 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Rectangular, 6 Position | 47.2" (1.20m) | IEC 320-C14 | - | 8.03" L x 3.70" W x 1.71" H (204.0mm x 94.0mm x 43.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
DT100Z-8AC/DC DESKTOP ADAPTER 15V 113W |
0 |
|
规格书 |
DT100Z (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 7.5A | 113 W | - | - | ITE (Commercial) | 85% | 0°C ~ 40°C | Rectangular, 6 Position | 72" (1.83m) | IEC 320-C14 | - | 7.09" L x 3.74" W x 1.97" H (180.0mm x 95.0mm x 50.0mm) | - |
|
DTM110PW190C8AC/DC DESKTOP ADAPTER 19V 110W |
0 |
|
规格书 |
DTM110-C8 (110W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 5.79A | 110 W | 150mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 60°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C8 | - | 5.51" L x 2.48" W x 1.30" H (140.0mm x 63.0mm x 33.0mm) | CE |
|
|
DT100Z-5AC/DC DESKTOP ADAPTER 12V 108W |
0 |
|
规格书 |
DT100Z (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 9A | 108 W | - | - | ITE (Commercial) | 85% | 0°C ~ 40°C | Rectangular, 6 Position | 72" (1.83m) | IEC 320-C14 | - | 7.09" L x 3.74" W x 1.97" H (180.0mm x 95.0mm x 50.0mm) | - |
