交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDM50-18-UD-P5RAC-DC, 18 VDC, 3.15 A, SW, C8 DE |
0 |
|
规格书 |
SDM50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.15A | 57 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | Multi-Blade (Sold Separately) | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV |
|
SDM36-12-UCM-P5RAC/DC DESKTOP ADAPTER 12V 36W |
0 |
|
规格书 |
SDM36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-12-UCM-P6AC/DC DESKTOP ADAPTER 12V 36W |
0 |
|
规格书 |
SDM36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-12-UCM-P6RAC/DC DESKTOP ADAPTER 12V 36W |
0 |
|
规格书 |
SDM36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-15-UCM-P5AC/DC DESKTOP ADAPTER 15V 36W |
0 |
|
规格书 |
SDM36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-15-UCM-P5RAC/DC DESKTOP ADAPTER 15V 36W |
0 |
|
规格书 |
SDM36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-15-UCM-P6AC/DC DESKTOP ADAPTER 15V 36W |
0 |
|
规格书 |
SDM36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-15-UCM-P6RAC/DC DESKTOP ADAPTER 15V 36W |
0 |
|
规格书 |
SDM36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-18-UCM-P5RAC/DC DESKTOP ADAPTER 18V 36W |
0 |
|
规格书 |
SDM36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 18V | 2A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-18-UCM-P6AC/DC DESKTOP ADAPTER 18V 36W |
0 |
|
规格书 |
SDM36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 18V | 2A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-18-UCM-P6RAC/DC DESKTOP ADAPTER 18V 36W |
0 |
|
规格书 |
SDM36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 18V | 2A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-24-UCM-P5RAC/DC DESKTOP ADAPTER 24V 36W |
0 |
|
规格书 |
SDM36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-24-UCM-P6AC/DC DESKTOP ADAPTER 24V 36W |
0 |
|
规格书 |
SDM36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDM36-24-UCM-P6RAC/DC DESKTOP ADAPTER 24V 36W |
0 |
|
规格书 |
SDM36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
SDI65-12-U-P10AC/DC DESKTOP ADAPTER 12V 60W |
0 |
|
规格书 |
SDI65-U (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL |
|

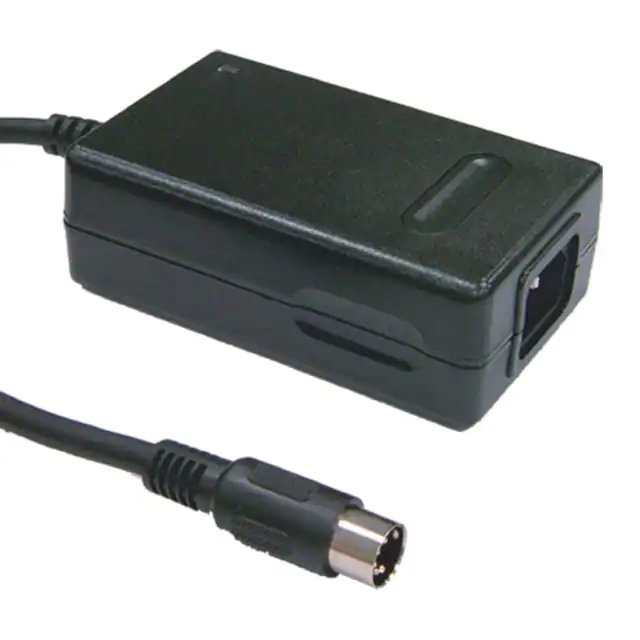

P25A13A-R1BAC/DC DSKTP ADPT 5V/12V/-5V 25W |
0 |
|
- |
P25A-T (25W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 12V, -5V | 2.5A, 800mA, 300mA | 25 W | - | - | ITE (Commercial) | 70% | 0°C ~ 40°C | DIN, 5 Pin | 60.2" (1.53m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cULus, GS |
|
|
P25A13D-R1BAC/DC DSKTP ADAPTER 5V +/-12 25W |
0 |
|
- |
P25A-T (25W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 12V, -12V | 2.5A, 800mA, 300mA | 25 W | - | - | ITE (Commercial) | 72% | 0°C ~ 40°C | DIN, 5 Pin | 60.2" (1.53m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cULus, GS |
|
|
P25A14E-R1BAC/DC DESKTOP ADPT 5V +/-15V 25W |
0 |
|
- |
P25A-T (25W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 15V, -15V | 2.5A, 500mA, 300mA | 25 W | - | - | ITE (Commercial) | 74% | 0°C ~ 40°C | DIN, 5 Pin | 60.2" (1.53m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cULus, GS |
|
P25B13A-R1BAC/DC DSKTP ADPT 5V/12V/-5V 25W |
0 |
|
- |
P25B-T (25W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 12V, -5V | 2.5A, 800mA, 300mA | 25 W | - | - | ITE (Commercial) | 70% | 0°C ~ 40°C | DIN, 5 Pin | 60.2" (1.53m) | IEC 320-C8 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cULus, GS |
|
|
P25B13D-R1BAC/DC DSKTP ADAPTER 5V +/-12 25W |
0 |
|
- |
P25B-T (25W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 12V, -12V | 2.5A, 800mA, 300mA | 25 W | - | - | ITE (Commercial) | 72% | 0°C ~ 40°C | DIN, 5 Pin | 60.2" (1.53m) | IEC 320-C8 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cULus, GS |
