交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6R36D-180-C8AC/DC DESKTOP ADAPTER 18V 36W |
0 |
|
规格书 |
Tri-Mag®, L6R36D (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2A | 36 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.82" L x 1.77" W x 1.38" H (97.0mm x 45.0mm x 35.0mm) | cUL, FCC, UL |
|
|
L6R36D-300-C8AC/DC DESKTOP ADAPTER 30V 36W |
0 |
|
规格书 |
Tri-Mag®, L6R36D (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 30V | 1.2A | 36 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.82" L x 1.77" W x 1.38" H (97.0mm x 45.0mm x 35.0mm) | cUL, FCC, UL |
|
|
L6R36D-360-C8AC/DC DESKTOP ADAPTER 36V 36W |
0 |
|
规格书 |
Tri-Mag®, L6R36D (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 36V | 1A | 36 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.82" L x 1.77" W x 1.38" H (97.0mm x 45.0mm x 35.0mm) | cUL, FCC, UL |
|
SMM12-9-KW-P5RAC-DC, 9 VDC, 1.33 A, SW, MULTI- |
0 |
|
- |
SMM12 (12W) | Box | Active | International | Wall Mount | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 100mW | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cURus, FCC, PSE, TUV |
|
|
SMM12-9-KW-P6AC-DC, 9 VDC, 1.33 A, SW, MULTI- |
0 |
|
- |
SMM12 (12W) | Box | Active | International | Wall Mount | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 100mW | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cURus, FCC, PSE, TUV |
|
|
SMM12-9-KW-P5AC-DC, 9 VDC, 1.33 A, SW, MULTI- |
0 |
|
- |
SMM12 (12W) | Box | Active | International | Wall Mount | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 100mW | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cURus, FCC, PSE, TUV |
|
SWH15-24-NW-P5AC/DC WALL MOUNT ADAPTER 24V 14W |
0 |
|
规格书 |
SWH15-N (15W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 600mA | 14 W | 100mW | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.44" L x 1.56" W x 1.31" H (62.0mm x 39.7mm x 33.2mm) | cULus, FCC |
|
|
SWH15-24-NW-P5RAC/DC WALL MOUNT ADAPTER 24V 14W |
0 |
|
规格书 |
SWH15-N (15W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 600mA | 14 W | 100mW | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.44" L x 1.56" W x 1.31" H (62.0mm x 39.7mm x 33.2mm) | cULus, FCC |
|
|
SWH15-24-NW-P6RAC/DC WALL MOUNT ADAPTER 24V 14W |
0 |
|
规格书 |
SWH15-N (15W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 600mA | 14 W | 100mW | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.44" L x 1.56" W x 1.31" H (62.0mm x 39.7mm x 33.2mm) | cULus, FCC |
|
|
SWH15-24-NW-P6AC/DC WALL MOUNT ADAPTER 24V 14W |
0 |
|
规格书 |
SWH15-N (15W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 600mA | 14 W | 100mW | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.44" L x 1.56" W x 1.31" H (62.0mm x 39.7mm x 33.2mm) | cULus, FCC |
|
VET18US150C2-JAAC/DC DESKTOP ADAPTER 15V 18W |
0 |
|
规格书 |
VET18 (18W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 1.25A | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.20" L x 1.71" W x 1.20" H (107.0mm x 43.5mm x 31.0mm) | CB |
|
|
VET18US180C2-JAAC/DC DESKTOP ADAPTER 18V 18W |
0 |
|
规格书 |
VET18 (18W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 1A | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.20" L x 1.71" W x 1.20" H (107.0mm x 43.5mm x 31.0mm) | CB |
|
|
VET18US240C2-JAAC/DC DESKTOP ADAPTER 24V 18W |
0 |
|
规格书 |
VET18 (18W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 750mA | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.20" L x 1.71" W x 1.20" H (107.0mm x 43.5mm x 31.0mm) | CB |
|

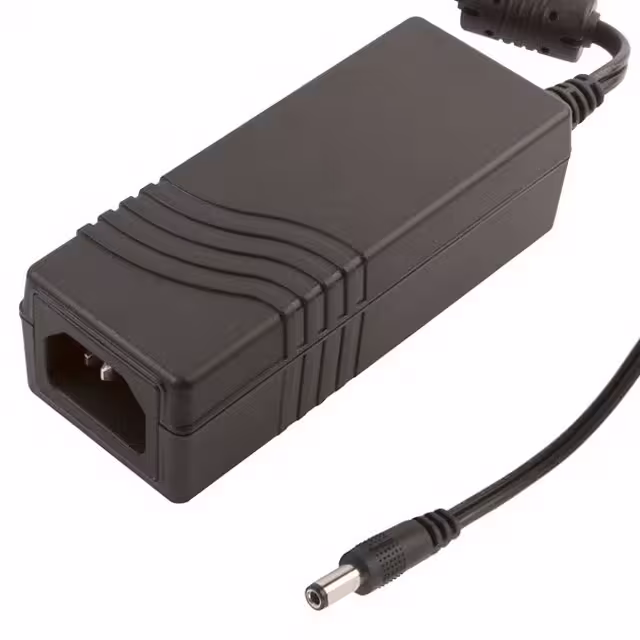

VEH20US05AC/DC DESKTOP ADAPTER 5V 15W |
0 |
|
规格书 |
VEH20 (20W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | IEC 320-C14 | - | 3.90" L x 1.65" W x 1.22" H (99.0mm x 42.0mm x 31.0mm) | - |
|
|
VEH20US12AC/DC DESKTOP ADAPTER 12V 20W |
0 |
|
规格书 |
VEH20 (20W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 1.67A | 20 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | IEC 320-C14 | - | 3.90" L x 1.65" W x 1.22" H (99.0mm x 42.0mm x 31.0mm) | - |
|
|
VEH20US24AC/DC DESKTOP ADAPTER 24V 20W |
0 |
|
规格书 |
VEH20 (20W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 830mA | 20 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | IEC 320-C14 | - | 3.90" L x 1.65" W x 1.22" H (99.0mm x 42.0mm x 31.0mm) | - |
|
|
SMM12-9-KB-MUBAC-DC, 9 VDC, 1.33 A, SW, MULTI- |
0 |
|
- |
SMM12 (12W) | Box | Active | International | Wall Mount | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 100mW | - | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | USB Micro | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cURus, FCC, PSE, TUV |
|
AQ15A-050AWAC/DC WALL MOUNT ADAPTER 5V 15W |
0 |
|
规格书 |
AQ15 (15W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 3A | 15 W | 75mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | USB C Receptacle | - | NEMA 1-15P | - | 2.05" L x 1.57" W x 0.92" H (52.0mm x 40.0mm x 23.3mm) | CB, CE, cULus |
|
SMI12-12-VW-CUBAC/DC WALL MOUNT ADAPTER 12V 12W |
0 |
|
规格书 |
SMI12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 1A | 12 W | 750mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | -10°C ~ 40°C | USB C | 59" (1.50m) | Multi-Blade (Included) | - | 2.72" L x 1.25" W x 1.87" H (69.0mm x 31.8mm x 47.5mm) | CE, cUIus, FCC, PSE |
|
|
SMI12-9-VW-MUBAC/DC WALL MOUNT ADAPTER 9V 12W |
0 |
|
规格书 |
SMI12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 750mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | -10°C ~ 40°C | USB Micro | 59" (1.50m) | Multi-Blade (Included) | - | 2.72" L x 1.25" W x 1.87" H (69.0mm x 31.8mm x 47.5mm) | CE, cUIus, FCC, PSE |
