交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

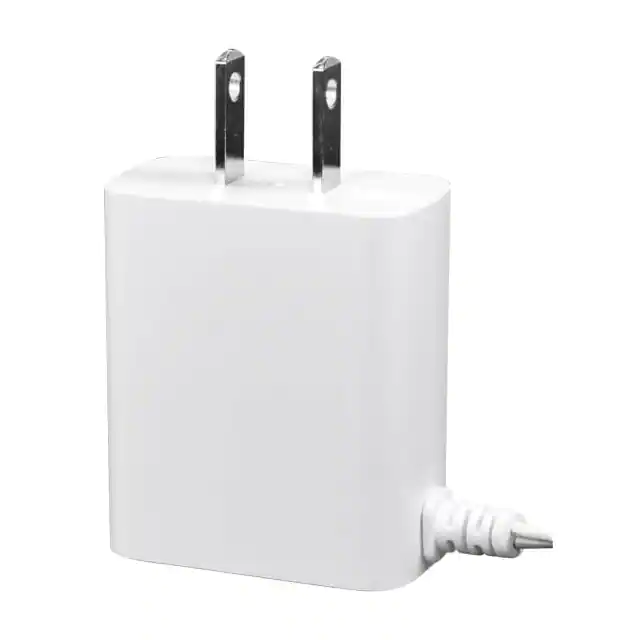

SWI10B-12-NW-MUBAC/DC WALL MOUNT ADAPTER 12V 12W |
0 |
|
规格书 |
SWI10B-N (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 75mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | USB Micro | 59" (1.50m) | NEMA 1-15P | - | 2.48" L x 0.89" W x 1.61" H (63.1mm x 22.5mm x 41.0mm) | cULus, FCC |
|
SMI12-9-KB-MUBAC/DC WALL MOUNT ADAPTER 9V 12W |
0 |
|
规格书 |
SMI12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 750mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | -10°C ~ 40°C | USB Micro | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.72" L x 1.25" W x 1.87" H (69.0mm x 31.8mm x 47.5mm) | CE, cUIus, FCC, PSE |
|
WR9MA2000LCP-F(R6W)AC/DC WALL MOUNT ADAPTER 5V 10W |
0 |
|
规格书 |
GT-86120-1005-W2E | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 60.2" (1.50m) | CEE 7/16 | - | 2.72" L x 1.13" W x 3.06" H (69.0mm x 28.8mm x 77.7mm) | CB, CE, EAC, LPS, UKRSepro |
|
|
SWI10B-5-NW-P7AC/DC WALL MOUNT ADAPTER 5V 10W |
0 |
|
规格书 |
SWI10B-N (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.48" L x 0.89" W x 1.61" H (63.1mm x 22.5mm x 41.0mm) | cULus, FCC |
|
|
SWI10B-5-NW-P6AC/DC WALL MOUNT ADAPTER 5V 10W |
0 |
|
规格书 |
SWI10B-N (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.48" L x 0.89" W x 1.61" H (63.1mm x 22.5mm x 41.0mm) | cULus, FCC |
|
|
SWI10B-5-NW-P5RAC/DC WALL MOUNT ADAPTER 5V 10W |
0 |
|
规格书 |
SWI10B-N (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.48" L x 0.89" W x 1.61" H (63.1mm x 22.5mm x 41.0mm) | cULus, FCC |
|
SWI10B-5-NW-P6RAC/DC WALL MOUNT ADAPTER 5V 10W |
0 |
|
规格书 |
SWI10B-N (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.48" L x 0.89" W x 1.61" H (63.1mm x 22.5mm x 41.0mm) | cULus, FCC |
|
|
SWI10B-5-NW-P7RAC/DC WALL MOUNT ADAPTER 5V 10W |
0 |
|
规格书 |
SWI10B-N (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.48" L x 0.89" W x 1.61" H (63.1mm x 22.5mm x 41.0mm) | cULus, FCC |
|
|
SWI10B-5-NW-P5AC/DC WALL MOUNT ADAPTER 5V 10W |
0 |
|
规格书 |
SWI10B-N (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.48" L x 0.89" W x 1.61" H (63.1mm x 22.5mm x 41.0mm) | cULus, FCC |
|
SMI6B-5-N-CUBAC/DC WALL MOUNT ADAPTER 5V 6W |
0 |
|
规格书 |
SMI6B (6W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1.2A | 6 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB C | 60.2" (1.53m) | NEMA 1-15P | - | 1.85" L x 1.36" W x 1.04" H (47.0mm x 34.5mm x 26.4mm) | CB Scheme, CCC, CSA, FCC, IEC, PSE, RCM, UL |
|
|
SMI6B-6-N-CUBAC/DC WALL MOUNT ADAPTER 6V 6W |
0 |
|
规格书 |
SMI6B (6W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 6V | 1A | 6 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB C | 60.2" (1.53m) | NEMA 1-15P | - | 1.85" L x 1.36" W x 1.04" H (47.0mm x 34.5mm x 26.4mm) | CB Scheme, CCC, CSA, FCC, IEC, PSE, RCM, UL |
|
|
SMI6B-9-N-CUBAC/DC WALL MOUNT ADAPTER 9V 5.9W |
0 |
|
规格书 |
SMI6B (6W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 660mA | 5.9 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB C | 60.2" (1.53m) | NEMA 1-15P | - | 1.85" L x 1.36" W x 1.04" H (47.0mm x 34.5mm x 26.4mm) | CB Scheme, CCC, CSA, FCC, IEC, PSE, RCM, UL |
|
|
SMI6B-12-N-CUBAC/DC WALL MOUNT ADAPTER 12V 6W |
0 |
|
规格书 |
SMI6B (6W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 500mA | 6 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB C | 60.2" (1.53m) | NEMA 1-15P | - | 1.85" L x 1.36" W x 1.04" H (47.0mm x 34.5mm x 26.4mm) | CB Scheme, CCC, CSA, FCC, IEC, PSE, RCM, UL |
|

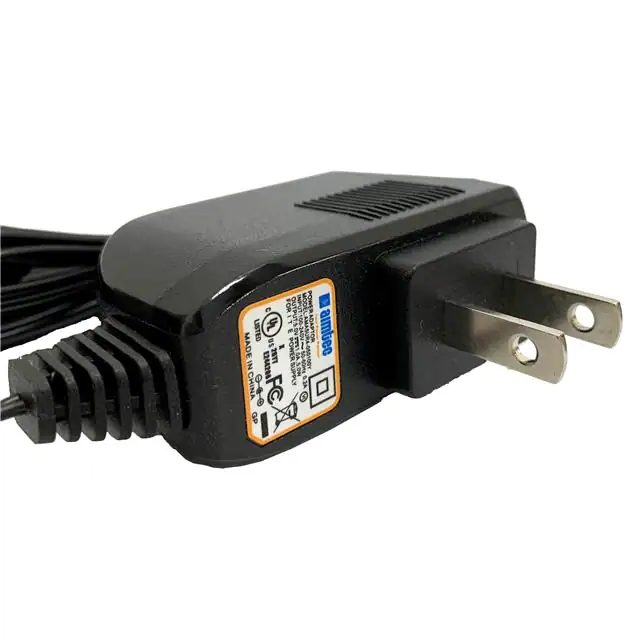

AMA5UU1-050100YAC/DC WALL MOUNT ADAPTER 5V 5W |
6 |
|
规格书 |
AMA5-Y | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | USB Micro | 60.2" (1.50m) | NEMA 1-15P | - | 2.52" L x 1.03" W x 2.40" H (64.0mm x 26.2mm x 61.0mm) | CE |
|
|
AMA5UR4-050100YAC/DC WALL MOUNT ADAPTER 5V 5W |
6 |
|
规格书 |
AMA5-Y | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | NEMA 1-15P | - | 2.52" L x 1.03" W x 2.40" H (64.0mm x 26.2mm x 61.0mm) | CE |
|
|
AMA5ER4-050100YAC/DC WALL MOUNT ADAPTER 5V 5W |
4 |
|
规格书 |
AMA5-Y | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | CEE 7/16 | - | 2.52" L x 1.03" W x 2.40" H (64.0mm x 26.2mm x 61.0mm) | CE |
|

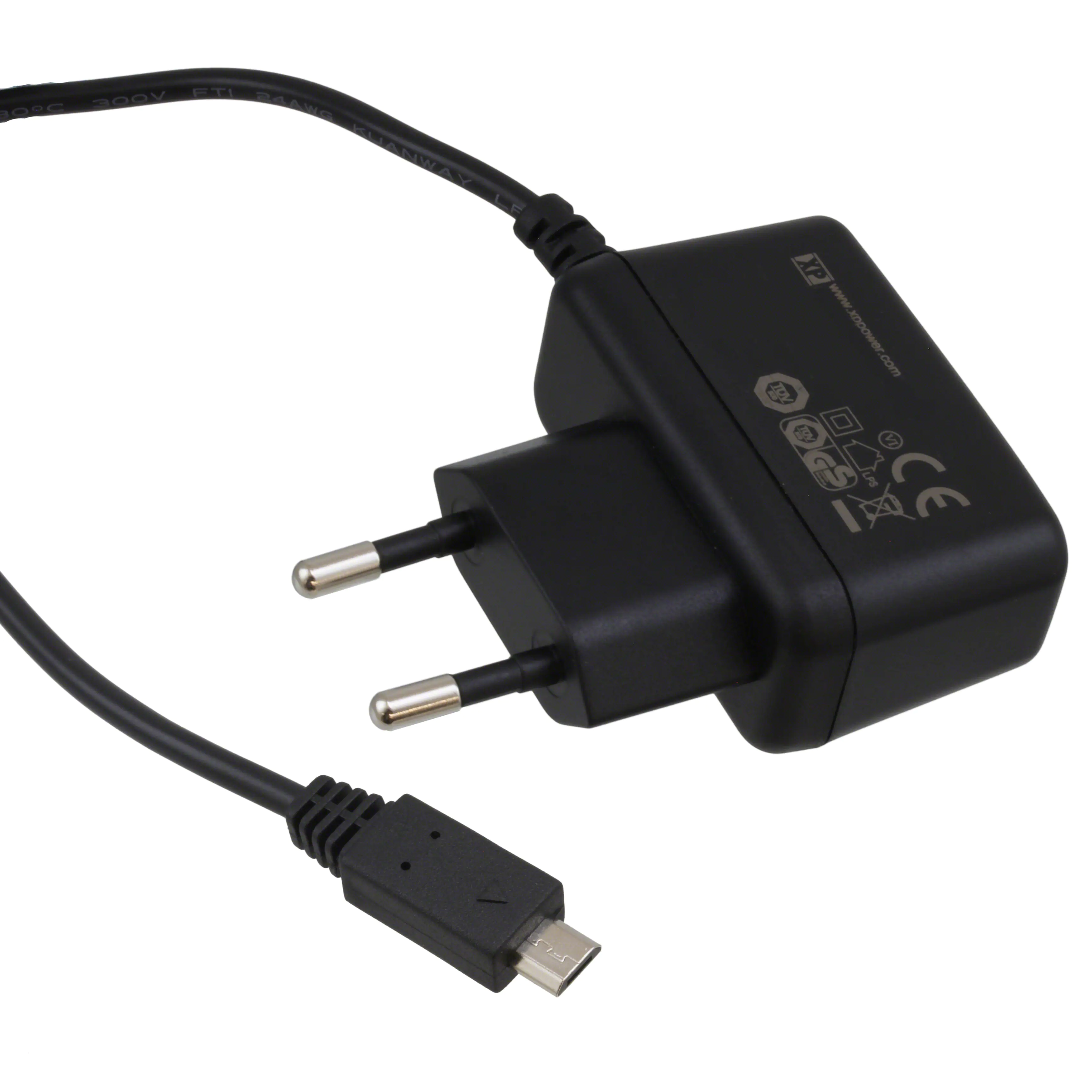

VEL05US050-EU-UBAC/DC WALL MOUNT ADAPTER 5V 5W |
2 |
|
规格书 |
VEL05 (5W) | Bulk | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | USB Micro | 59" (1.50m) | CEE 7/16 | - | 2.17" L x 0.95" W x 2.13" H (55.1mm x 24.1mm x 54.0mm) | CB |
|

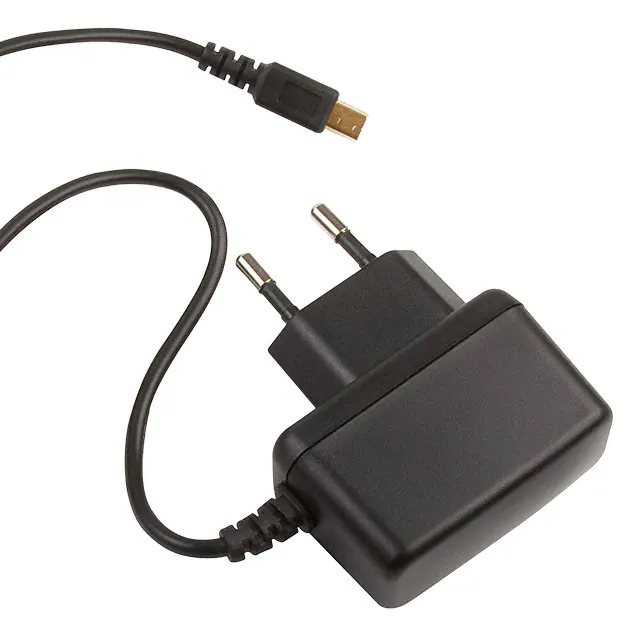

VEL05US050-EU-MBAC/DC WALL MOUNT ADAPTER 5V 5W |
0 |
|
规格书 |
VEL05 (5W) | Bulk | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | USB Mini | 59" (1.50m) | CEE 7/16 | - | 2.17" L x 0.95" W x 2.13" H (55.1mm x 24.1mm x 54.0mm) | CB |
|
VEL05US050-EU-JAAC/DC WALL MOUNT ADAPTER 5V 5W |
0 |
|
规格书 |
VEL05 (5W) | Bulk | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | CEE 7/16 | - | 2.17" L x 0.95" W x 2.13" H (55.1mm x 24.1mm x 54.0mm) | CB |
|
|
VEL05US060-EU-JAAC/DC WALL MOUNT ADAPTER 6V 5W |
0 |
|
规格书 |
VEL05 (5W) | Bulk | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 6V | 830mA | 5 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | CEE 7/16 | - | 2.17" L x 0.95" W x 2.13" H (55.1mm x 24.1mm x 54.0mm) | CB |
