交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSAA20R-120L6-R-CR1AC/DC WALL MOUNT ADAPTER 12V 20W Phihong USA |
0 |
|
规格书 |
PSAA20R-L6 (20W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1.67A | 20 W | 10mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.54" H (71.7mm x 50.0mm x 39.1mm) | AS/NZS, BSMI, cULus, IEC, PSE |
|
|
PSAA20R-240L6-R-CR1AC/DC WALL MOUNT ADAPTER 24V 20W Phihong USA |
0 |
|
规格书 |
PSAA20R-L6 (20W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 830mA | 20 W | 10mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.54" H (71.7mm x 50.0mm x 39.1mm) | AS/NZS, cULus, IEC |
|
PSA120U-540L6AC/DC DESKTOP ADAPTER 54V 120W Phihong USA |
0 |
|
规格书 |
PSA120U-L6 (120W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 54V | 2.22A | 120 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C14 | - | 5.98" L x 2.87" W x 1.46" H (152.0mm x 73.0mm x 37.0mm) | CE, cULus, GS |
|

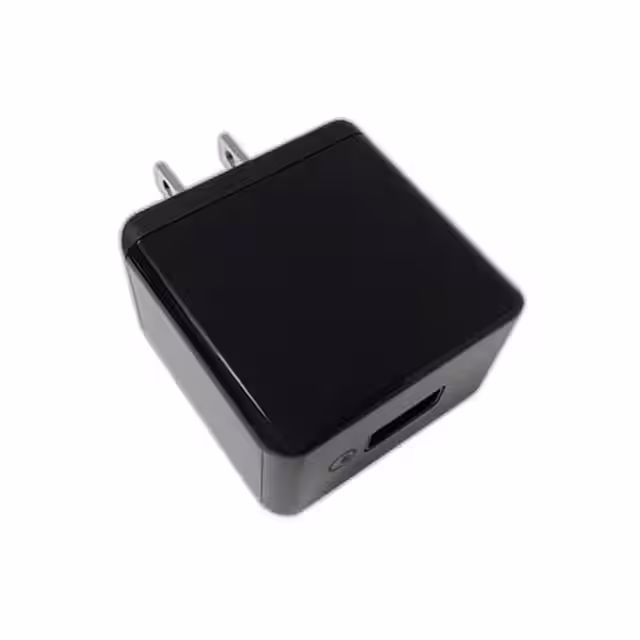

PSA15A-308QAC/DC WALL MT ADPT 5V/9V/12V 15W Phihong USA |
0 |
|
规格书 |
PSA15A (15W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V/9V/12V | 1.67A, 1.67A, 1.25A | 15 W | 75mW (Max) | - | ITE (Commercial) | Level VI | -5°C ~ 45°C | USB A Receptacle | - | NEMA 1-15P | - | 1.77" L x 1.06" W x 1.77" H (45.0mm x 27.0mm x 45.0mm) | CB, CE, cUL, UL |
|

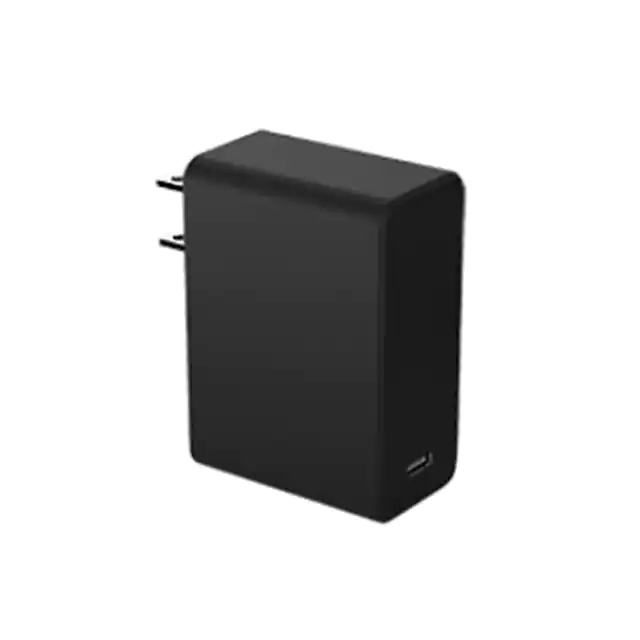

AQ36A-5CA-HAC/DC WALL MNT ADAPT 5V/12V 36W Phihong USA |
0 |
|
规格书 |
AQ36 (36W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V/12V | 3A, 3A | 36 W | 75mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 45°C | USB C Power Delivery (PD) | - | NEMA 1-15P | - | 2.64" L x 1.14" W x 1.89" H (67.0mm x 29.0mm x 48.0mm) | cULus |
|
PPL250U-120AC/DC DESKTOP ADAPTER 12V 240W Phihong USA |
0 |
|
规格书 |
PPL250U (250W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 20A | 240 W | 150mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Rectangular, 6 Position | 47.2" (1.20m) | IEC 320-C14 | - | 8.03" L x 3.70" W x 1.71" H (204.0mm x 94.0mm x 43.5mm) | CE, cULus |
|
PPL250U-480L6AC/DC DESKTOP ADAPTER 48V 250W Phihong USA |
0 |
|
规格书 |
PPL250U-L6 (250W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 5.2A | 250 W | 500mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Rectangular, 6 Position | 47.2" (1.20m) | IEC 320-C14 | - | 8.03" L x 3.70" W x 1.71" H (204.0mm x 94.0mm x 43.5mm) | CE, cULus |
|
|
PSAC24E-120P-RAC/DC WALL MOUNT ADAPTER 12V 24W Phihong USA |
0 |
|
规格书 |
PSAC24E (24W) | Bulk | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 2A | 24 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 3.29" L x 1.38" W x 2.11" H (83.5mm x 35.0mm x 53.5mm) | IEC |
|
|
PPL18E-120AC/DC WALL MOUNT ADAPTER 12V 19W Phihong USA |
0 |
|
规格书 |
PPL18E (18W) | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 12V | 1.6A | 19 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 2.83" L x 1.34" W x 3.54" H (72.0mm x 34.0mm x 90.0mm) | IEC |
|
|
PPL18A-120AC/DC WALL MOUNT ADAPTER 12V 19W Phihong USA |
0 |
|
规格书 |
PPL18A (18W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 12V | 1.6A | 19 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 2.72" H (72.0mm x 34.0mm x 69.0mm) | cULus |
