交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SGA12E18-P1JAC/DC WALL MOUNT ADAPTER 18V 12W MEAN WELL USA Inc. |
0 |
|
规格书 |
SGA12E (12W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 666mA | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 2.45" L x 1.08" W x 1.56" H (62.2mm x 27.4mm x 39.7mm) | CB, CE, GS |
|

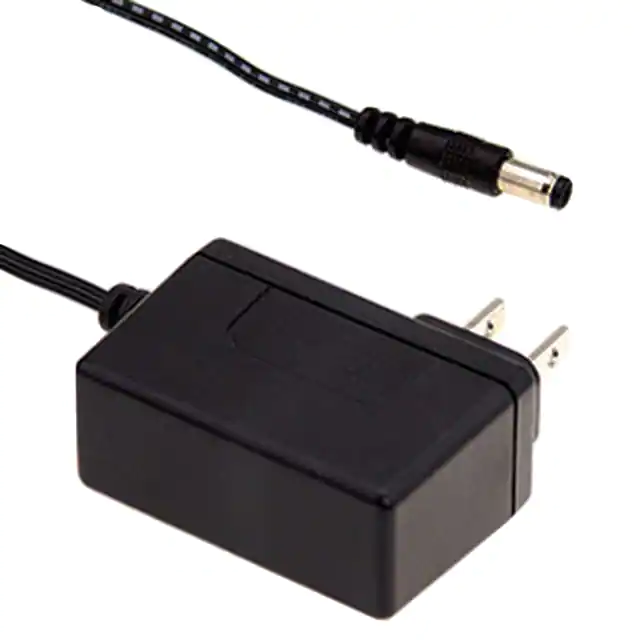

SGA12U05-P1JAC/DC WALL MOUNT ADAPTER 5V 12W MEAN WELL USA Inc. |
0 |
|
规格书 |
SGA12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | NEMA 1-15P | - | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | CB, cURus |
|
|
SGA12U18-P1JAC/DC WALL MOUNT ADAPTER 18V 12W MEAN WELL USA Inc. |
0 |
|
规格书 |
SGA12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 666mA | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | CB, cURus |
|

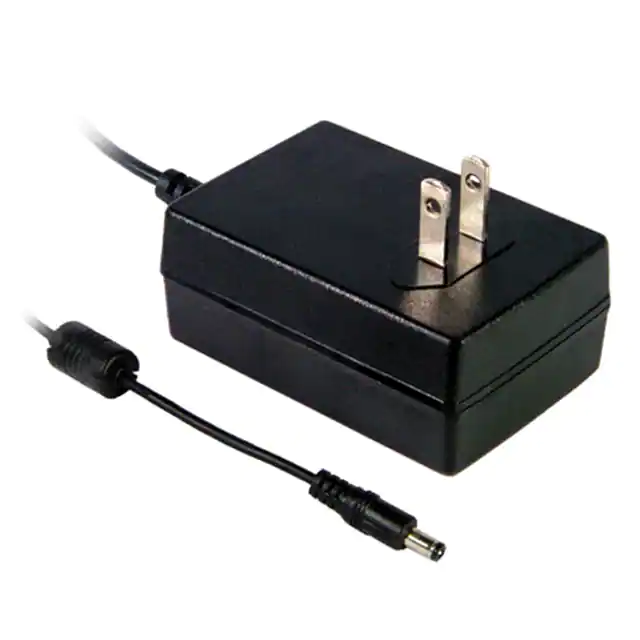

GST36U05-P1JAC/DC WALL MOUNT ADAPTER 5V 22W MEAN WELL USA Inc. |
0 |
|
规格书 |
GST36U (36W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 5V | 4.3A | 22 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | BSMI, CB, cULus, EAC |
|
GSM06U15-P1JAC/DC WALL MOUNT ADAPTER 15V 6W MEAN WELL USA Inc. |
5 |
|
规格书 |
GSM06U (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 15V | 400mA | 6 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | NEMA 1-15P | - | 2.60" L x 1.26" W x 1.89" H (66.0mm x 32.0mm x 48.0mm) | cURus |
|

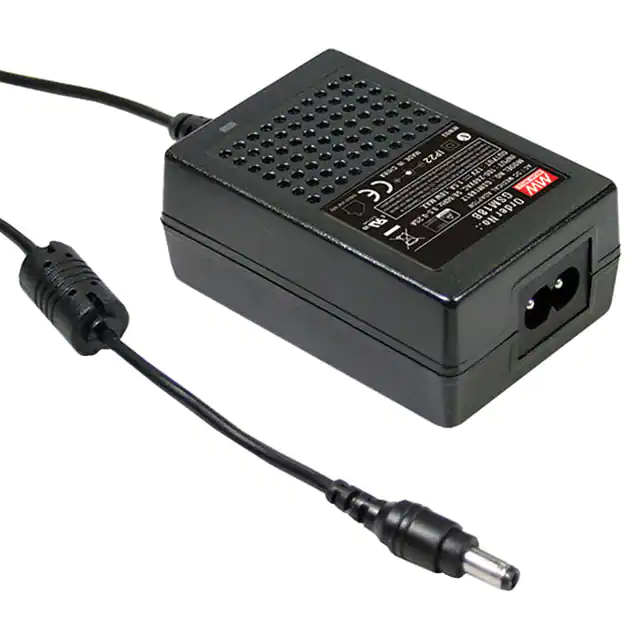

GSM18B15-P1JAC/DC DESKTOP ADAPTER 15V 18W MEAN WELL USA Inc. |
0 |
|
规格书 |
GSM18B (18W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 15V | 1.2A | 18 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cRUus, TUV |
|
|
GSM18B18-P1JAC/DC DESKTOP ADAPTER 18V 18W MEAN WELL USA Inc. |
0 |
|
规格书 |
GSM18B (18W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 18V | 1A | 18 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cRUus, TUV |
|

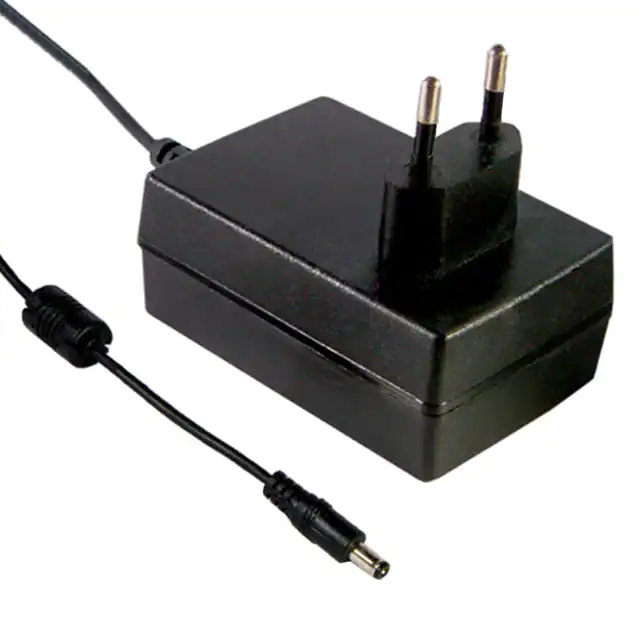

GSM18E18-P1JAC/DC WALL MOUNT ADAPTER 18V 18W MEAN WELL USA Inc. |
0 |
|
规格书 |
GSM18E (18W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 18V | 1A | 18 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, TUV |
|

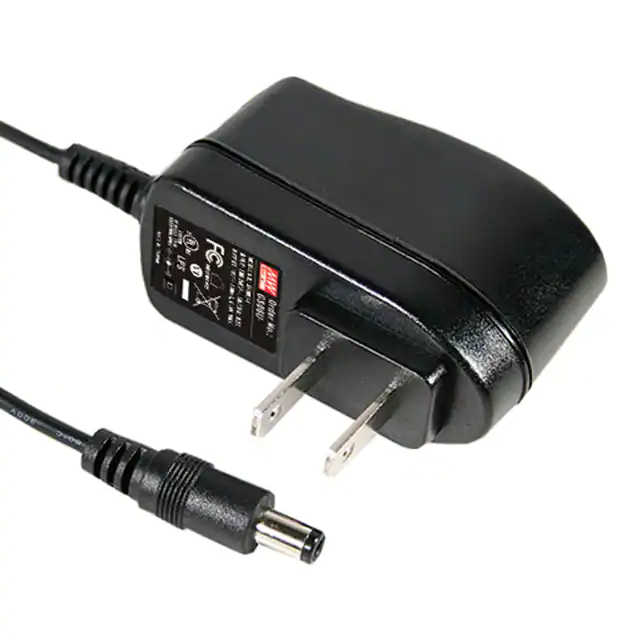

GS06U-5P1JAC/DC WALL MOUNT ADAPTER 18V 6W MEAN WELL USA Inc. |
4 |
|
规格书 |
GS06U (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 330mA | 6 W | 75mW (Max) | Positive Center | - | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.60" L x 1.26" W x 1.89" H (66.0mm x 32.0mm x 48.0mm) | cULus |
|
|
GS06U-8P1JAC/DC WALL MOUNT ADAPTER 48V 6W MEAN WELL USA Inc. |
4 |
|
规格书 |
GS06U (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 125mA | 6 W | 75mW (Max) | Positive Center | - | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.60" L x 1.26" W x 1.89" H (66.0mm x 32.0mm x 48.0mm) | cULus |
