交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GST18A18-P1JAC/DC DESKTOP ADAPTER 18V 18W MEAN WELL USA Inc. |
0 |
|
规格书 |
GST18A (18W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 18V | 1A | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.66" L x 2.13" W x 1.42" H (93.0mm x 54.0mm x 36.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
GST18B24-P1JAC/DC DESKTOP ADAPTER 24V 18W MEAN WELL USA Inc. |
0 |
|
规格书 |
GST18B (18W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 750mA | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|

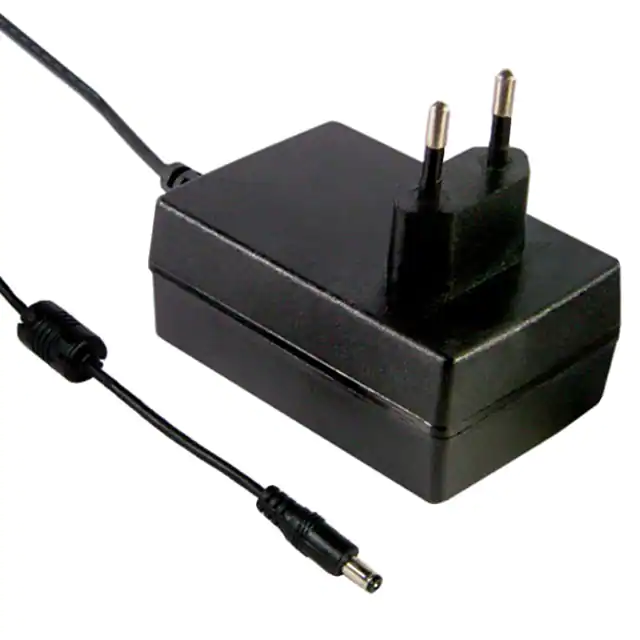

GST18E18-P1JAC/DC WALL MOUNT ADAPTER 18V 18W MEAN WELL USA Inc. |
0 |
|
规格书 |
GST18E (18W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 18V | 1A | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cUL, EAC, GS, SIRIM |
|
GST18U15-P1JAC/DC WALL MOUNT ADAPTER 15V 18W MEAN WELL USA Inc. |
0 |
|
规格书 |
GST18U (18W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 15V | 1.2A | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | BSMI, CB, cULus, EAC |
|
GS18U48-P1JAC/DC WALL MOUNT ADAPTER 48V 18W MEAN WELL USA Inc. |
0 |
|
规格书 |
GS18U (18W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 375mA | 18 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, cULus, FCC, TUV |
|
|
GS18B18-P1JAC/DC DESKTOP ADAPTER 2POLE MEAN WELL USA Inc. |
0 |
|
- |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GS18E15-P1JAC/DC WALL MOUNT ADAPTER 15V 25W MEAN WELL USA Inc. |
0 |
|
规格书 |
GS18E (18W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1.66A | 25 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | KSC 8305 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, GS, TUV |
|
|
GS18E24-P1JAC/DC WALL MOUNT ADAPTER 24V 25W MEAN WELL USA Inc. |
0 |
|
规格书 |
GS18E (18W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.04A | 25 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | KSC 8305 | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, CE, GS, TUV |
|
|
GS18B15-P1JAC/DC DESKTOP ADAPTER 2POLE MEAN WELL USA Inc. |
0 |
|
- |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GS18B09-P1JAC/DC DESKTOP ADAPTER 2POLE MEAN WELL USA Inc. |
0 |
|
- |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
