交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSM60E15-P1JAC/DC WALL MOUNT ADAPTER 15V 60W MEAN WELL USA Inc. |
0 |
|
规格书 |
GSM60E (60W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 15V | 4A | 60 W | - | Positive Center | Medical | 88% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | KSC 8305 | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, EAC, TUV |
|
|
GSM60E48-P1JAC/DC WALL MOUNT ADAPTER 48V 60W MEAN WELL USA Inc. |
0 |
|
规格书 |
GSM60E (60W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 48V | 1.25A | 60 W | - | Positive Center | Medical | 90% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | KSC 8305 | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, EAC, TUV |
|

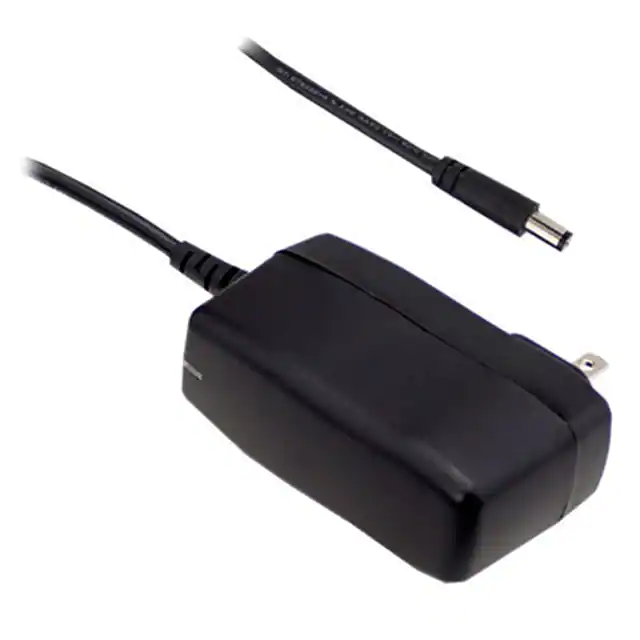

SGA60U18-P1JAC/DC WALL MOUNT ADAPTER 18V 60W MEAN WELL USA Inc. |
2 |
|
规格书 |
SGA60U (60W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 3.33A | 60 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | NEMA 1-15P | - | 3.68" L x 1.38" W x 2.03" H (93.5mm x 35.0mm x 51.5mm) | CB, cULus |
|

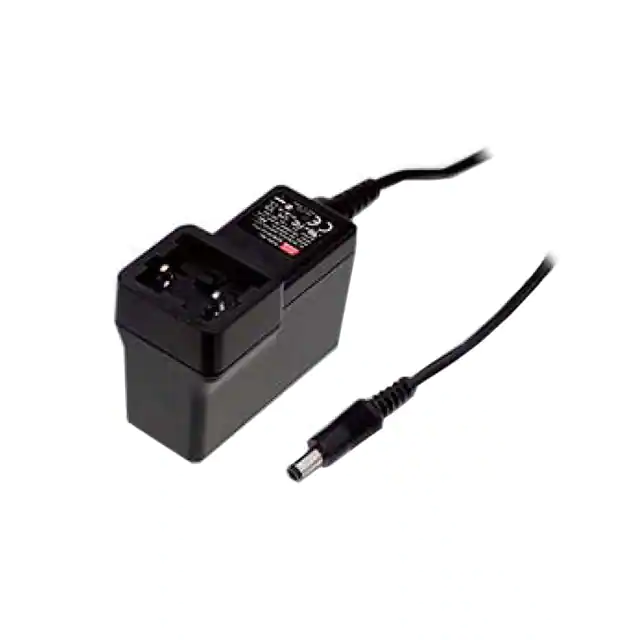

GEM60I48-P1JAC/DC WALL MOUNT ADAPTER 48V 60W MEAN WELL USA Inc. |
0 |
|
规格书 |
GEM60I (60W) | Box | Obsolete | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 48V | 1.25A | 60 W | - | Positive Center | Medical | 90% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.97" L x 1.54" W x 2.21" H (75.5mm x 39.1mm x 56.2mm) | CB, CE, cURus, FCC, TUV |
|
GST120A24-NCAC/DC DESKTOP ADAPTER 24V 120W MEAN WELL USA Inc. |
0 |
|
规格书 |
GST120A (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 5A | 120 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | - | 47.2" (1.20m) | IEC 320-C14 | - | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
|
GST120A12-NCAC/DC DESKTOP ADAPTER 12V 102W MEAN WELL USA Inc. |
0 |
|
规格书 |
GST120A (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 8.5A | 102 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | - | 39.4" (1.00m) | IEC 320-C14 | - | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|

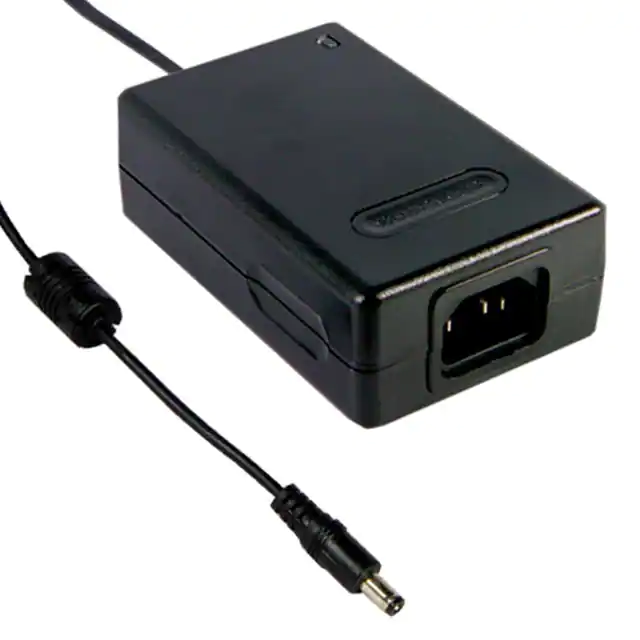

MES30A11P1JAC/DC DESKTOP ADAPTER 7.5V 25W MEAN WELL USA Inc. |
0 |
|
规格书 |
MES30A (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 7.5V | 3.33A | 25 W | - | Positive Center | Medical | 72% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV |
|
|
MES30A-1P1JAC/DC DESKTOP ADAPTER 5V 25W MEAN WELL USA Inc. |
0 |
|
规格书 |
MES30A (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 5A | 25 W | - | Positive Center | Medical | 70% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV |
|
|
MES30A-2P1JAC/DC DESKTOP ADAPTER 9V 30W MEAN WELL USA Inc. |
0 |
|
规格书 |
MES30A (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 3.33A | 30 W | - | Positive Center | Medical | 74% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV |
|
|
MES30A-3P1JAC/DC DESKTOP ADAPTER 12V 30W MEAN WELL USA Inc. |
0 |
|
规格书 |
MES30A (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | - | Positive Center | Medical | 76% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 4.25" L x 2.64" W x 1.42" H (108.0mm x 67.0mm x 36.0mm) | CB, CE, cURus, TUV |
