交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WM071-1950-D5AC/DC WALL MNT ADPT +/-15V 7.5W Inventus Power |
0 |
|
规格书 |
WM | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 108 ~ 132 VAC | 15V, -15V | 240mA, 240mA | 7.5 W | - | - | ITE (Commercial) | - | 0°C ~ 40°C | DIN, 5 Pin | - | NEMA 1-15P | - | - | - |
|

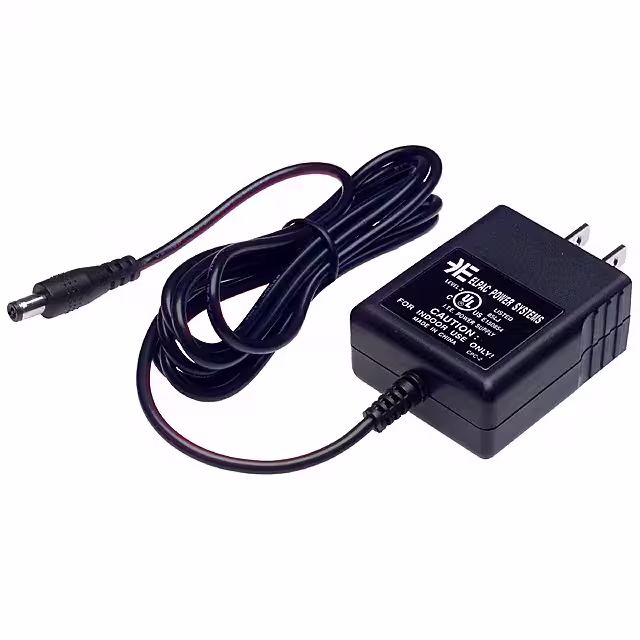

WP1112-760AC/DC WALL MNT ADAPTER 12V 9.6W Inventus Power |
0 |
|
规格书 |
WP11 | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 12V | 800mA | 9.6 W | - | Positive Center | ITE (Commercial) | 75% | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | NEMA 1-15P | - | - | CE |
|

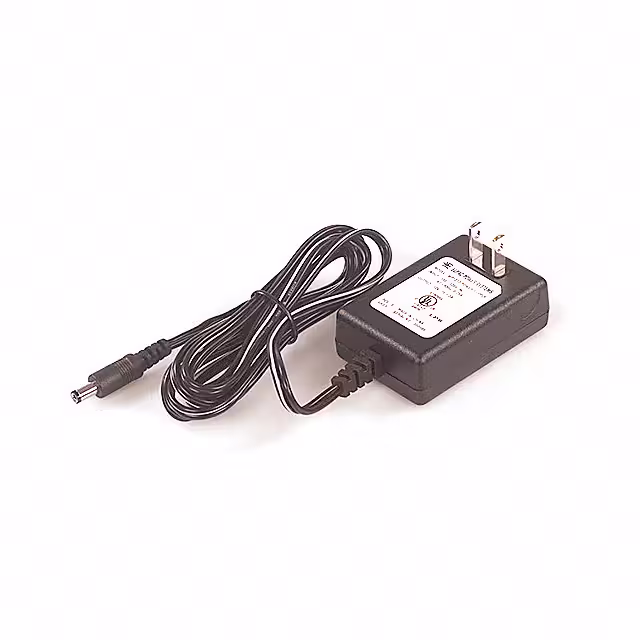

WP1212-760AC/DC WALL MOUNT ADAPTER 12V 12W Inventus Power |
0 |
|
规格书 |
WP12 | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 132 VAC | 12V | 1A | 12 W | - | Positive Center | ITE (Commercial) | - | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | NEMA 1-15P | - | 2.95" L x 1.95" W x 0.98" H (75.0mm x 49.5mm x 25.0mm) | - |
|

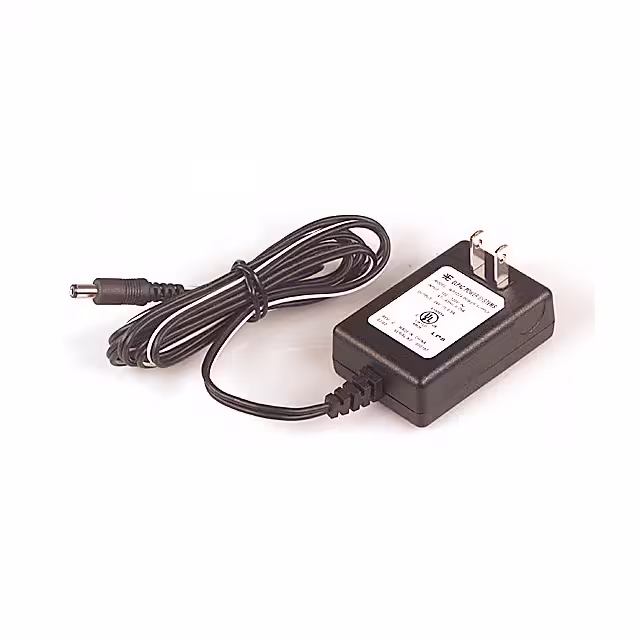

WP1224-760AC/DC WALL MOUNT ADAPTER 24V 12W Inventus Power |
0 |
|
规格书 |
WP12 | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 132 VAC | 24V | 500mA | 12 W | - | Positive Center | ITE (Commercial) | - | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | NEMA 1-15P | - | 2.95" L x 1.95" W x 0.98" H (75.0mm x 49.5mm x 25.0mm) | - |
|

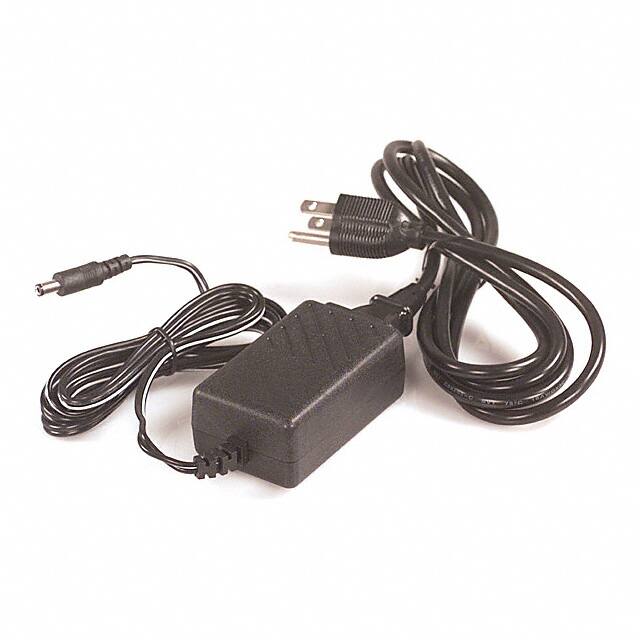

W1505-760AC/DC DESKTOP ADAPTER 5V 13W Inventus Power |
0 |
|
- |
W15 | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V | 2.5A | 13 W | - | Positive Center | ITE (Commercial) | 75% | - | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | - | - |
|

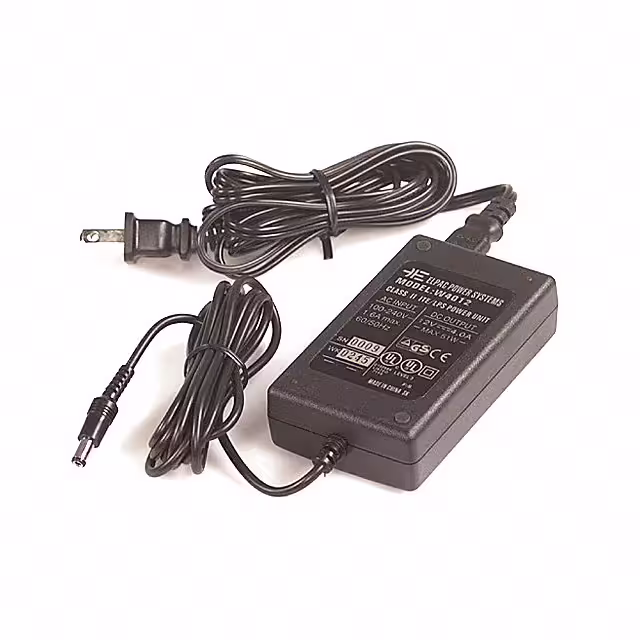

W4012-760AC/DC DESKTOP ADAPTER 12V 48W Inventus Power |
0 |
|
规格书 |
W40 (50W) | - | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 4A | 48 W | - | Positive Center | ITE (Commercial) | 85% | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C8 | - | 4.13" L x 2.36" W x 1.12" H (104.9mm x 59.9mm x 28.4mm) | CE |
|

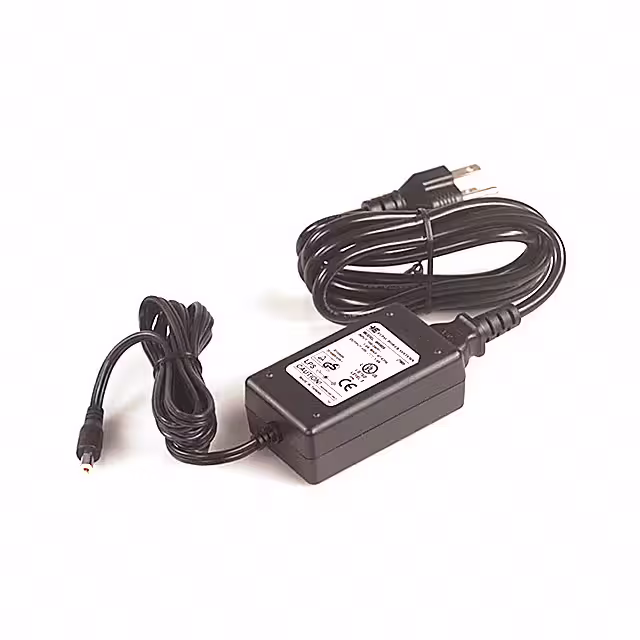

W4024-760AC/DC DESKTOP ADAPTER 24V 50W Inventus Power |
0 |
|
规格书 |
W40 (50W) | - | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 2.1A | 50 W | - | Positive Center | ITE (Commercial) | 85% | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C8 | - | 4.13" L x 2.36" W x 1.12" H (104.9mm x 59.9mm x 28.4mm) | CE |
|

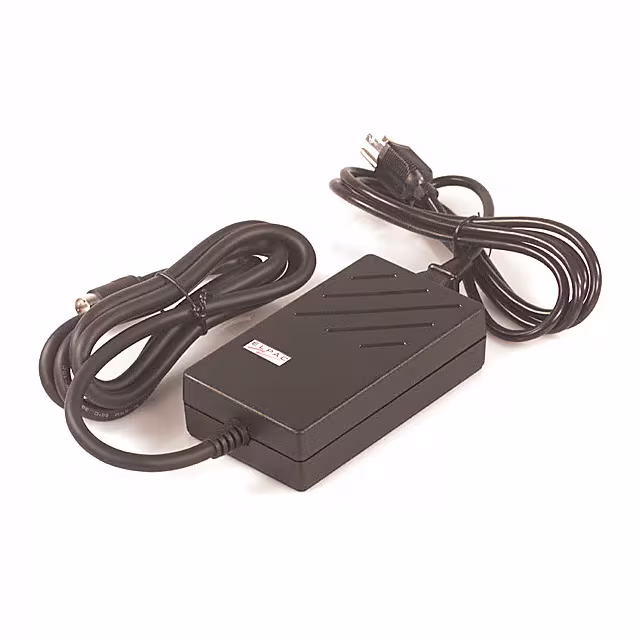

W4221-D5AC/DC DESKTOP ADAPTER 5V/12V 42W Inventus Power |
0 |
|
规格书 |
W42 (42W) | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V, 12V | 4.8A, 1.5A | 42 W | - | - | ITE (Commercial) | - | 0°C ~ 40°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.50" L x 3.33" W x 1.50" H (139.7mm x 84.6mm x 38.1mm) | CB, CE |
|

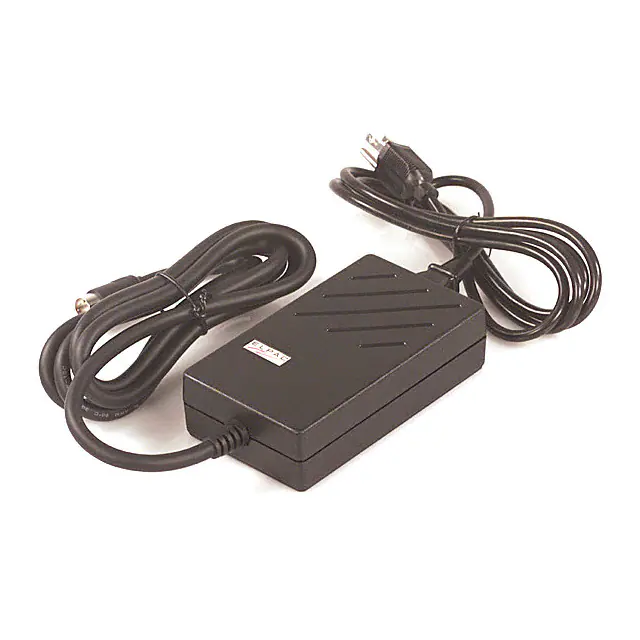

W4231-D5AC/DC DSKTP ADAPTER 5V +/-12 42W Inventus Power |
0 |
|
规格书 |
W42 (42W) | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V, 12V, -12V | 3A, 2.5A, 500mA | 42 W | - | - | ITE (Commercial) | - | 0°C ~ 40°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.50" L x 3.33" W x 1.50" H (139.7mm x 84.6mm x 38.1mm) | CB, CE |
|
W4232-D5AC/DC DSKTP ADAPTER 5V +/-12 42W Inventus Power |
0 |
|
规格书 |
W42 (42W) | - | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V, 12V, -12V | 4.8A, 1.5A, 500mA | 42 W | - | - | ITE (Commercial) | - | 0°C ~ 40°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.50" L x 3.33" W x 1.50" H (139.7mm x 84.6mm x 38.1mm) | CB, CE |
