交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010427CHSRP-25-1004 CH |
50 |
|
规格书 |
SRP-25 (25W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) |
|
|
1010428CHSRP-25-1005 CH |
50 |
|
规格书 |
SRP-25 (25W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 1.04 A | - | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) |
|
|
1010425CHSRP-25-1002 CH |
50 |
|
规格书 |
SRP-25 (25W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 5 A | - | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) |
|
|
1010429CHSRP-25-1006 CH |
50 |
|
规格书 |
SRP-25 (25W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 520 mA | - | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) |
|

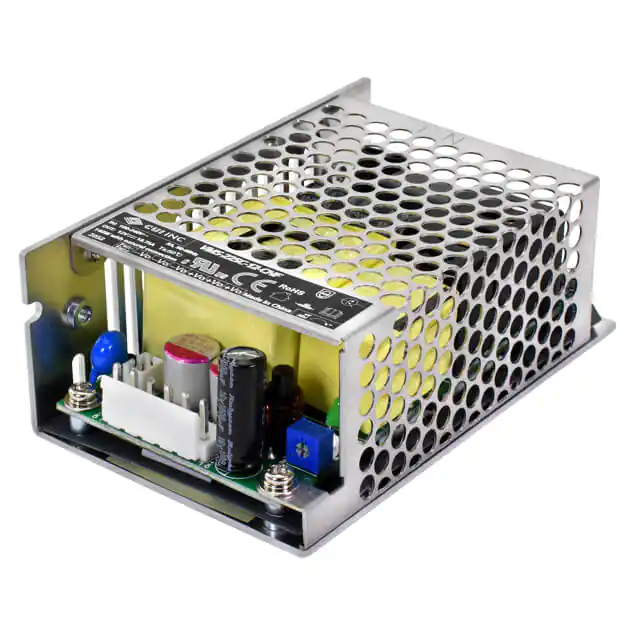

VMS-225C-15-CNFAC/DC CONVERTER 15V 225W |
51 |
|
规格书 |
VMS-225C-CNF (225W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 15 A | - | - | - | - | - | 225W | Household Appliances, Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) |
|
1010392SRP-40A-1001 |
75 |
|
规格书 |
SRP-40A (40W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 10 A | - | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) |
|
|
1010831SRP-40A-1008 |
50 |
|
规格书 |
SRP-40A (40W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) |
|
|
1010394SRP-40A-1003 |
50 |
|
规格书 |
SRP-40A (40W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) |
|
|
1010396SRP-40A-1005 |
50 |
|
规格书 |
SRP-40A (40W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) |
|
|
1010393SRP-40A-1002 |
31 |
|
规格书 |
SRP-40A (40W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) |
|
|
1010397SRP-40A-1006 |
31 |
|
规格书 |
SRP-40A (40W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 830 mA | - | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) |
|
|
1010422CHSRP-25-2004 CH |
50 |
|
规格书 |
SRP-25 (25W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 12V | -12V | - | - | - | - | 1.5 A | 1.5 A | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) |
|
|
1010419CHSRP-25-2001 CH |
50 |
|
规格书 |
SRP-25 (25W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 5V | 24V | - | - | - | - | 3 A | 1 A | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) |
|
|
1010420CHSRP-25-2002 CH |
50 |
|
规格书 |
SRP-25 (25W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 5V | 12V | - | - | - | - | 3 A | 1.5 A | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) |
|
|
1010423CHSRP-25-2005 CH |
50 |
|
规格书 |
SRP-25 (25W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 15V | -15V | - | - | - | - | 1.5 A | 1.5 A | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) |
|
|
1010421CHSRP-25-2003 CH |
50 |
|
规格书 |
SRP-25 (25W) | Box | Active | Chassis | 2 | 100 ~ 240 VAC | 5V | -5V | - | - | - | - | 3 A | 2 A | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) |
|
MB65S12KAC/DC CONVERTER 12V 65W |
0 |
|
规格书 |
MB65S (65W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 65W | Medical | 4.5 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 1.30" H (88.9mm x 50.8mm x 33.1mm) |
|
LOF350-20B48AC/DC CONVERTER 48V 200W |
225 |
|
规格书 |
LOF350-20Bxx (350W) | Tray | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) |
|
TB65S48CAC/DC CONVERTER 48V 65W |
0 |
|
规格书 |
TB65 (65W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.35 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 1.30" H (88.9mm x 50.8mm x 33.1mm) |
|
|
TB65S15CAC/DC CONVERTER 15V 65W |
0 |
|
规格书 |
TB65 (65W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 1.30" H (88.9mm x 50.8mm x 33.1mm) |
