交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

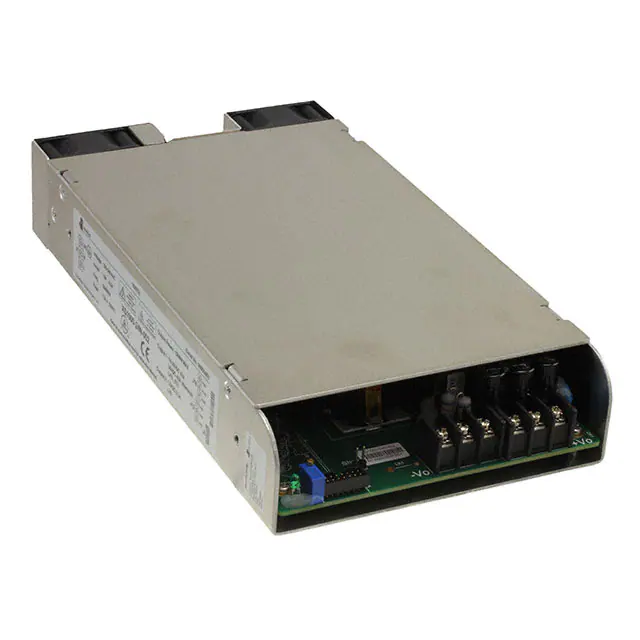

XS1000-24N-002AC/DC CONVERTER 24V 1008W EXCELSYS / Advanced Energy |
48 |
|
规格书 |
Xsolo (1000W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 380 VDC | 24V | - | - | - | - | - | 42 A | - | - | - | - | - | 1008W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.37" L x 5.04" W x 1.60" H (238.0mm x 128.0mm x 40.6mm) |
|
XS1000-48N-002AC/DC CONVERTER 48V 1008W EXCELSYS / Advanced Energy |
35 |
|
规格书 |
Xsolo (1000W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 380 VDC | 48V | - | - | - | - | - | 21 A | - | - | - | - | - | 1008W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.37" L x 5.04" W x 1.60" H (238.0mm x 128.0mm x 40.6mm) |
|
XS1000-48N-000AC/DC CONVERTER 48V 1008W EXCELSYS / Advanced Energy |
179 |
|
规格书 |
Xsolo (1000W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 380 VDC | 48V | - | - | - | - | - | 21 A | - | - | - | - | - | 1008W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.37" L x 5.04" W x 1.60" H (238.0mm x 128.0mm x 40.6mm) |
|
|
XS1000-24N-001AC/DC CONVERTER 24V 1008W EXCELSYS / Advanced Energy |
89 |
|
规格书 |
Xsolo (1000W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 380 VDC | 24V | - | - | - | - | - | 42 A | - | - | - | - | - | 1008W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.37" L x 5.04" W x 1.60" H (238.0mm x 128.0mm x 40.6mm) |
|
CS10S-24N-0-AAC/DC CONVERTER 24V 1000W EXCELSYS / Advanced Energy |
35 |
|
规格书 |
CS1000 (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 41.6 A | - | - | - | - | - | 1000W | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, PMBus™, Remote Sense, Universal Input | Chassis Mount | 10.30" L x 5.00" W x 1.54" H (261.6mm x 127.0mm x 39.1mm) |
|
|
XS1000-24NC004AC/DC CONVERTER 24V 1008W EXCELSYS / Advanced Energy |
28 |
|
规格书 |
Xsolo (1000W) | Box | Active | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 120 ~ 380 VDC | 24V | - | - | - | - | - | 42 A | - | - | - | - | - | 1008W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.37" L x 5.04" W x 1.60" H (238.0mm x 128.0mm x 40.6mm) |
|
|
CS10M-48N-0-AAC/DC CONVERTER 48V 1000W EXCELSYS / Advanced Energy |
50 |
|
规格书 |
CS1000 (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 1000W | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, PMBus™, Remote Sense, Universal Input | Chassis Mount | 10.30" L x 5.00" W x 1.54" H (261.6mm x 127.0mm x 39.1mm) |
|
|
CS10M-24N-0-AAC/DC CONVERTER 24V 1000W EXCELSYS / Advanced Energy |
84 |
|
规格书 |
CS1000 (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 41.6 A | - | - | - | - | - | 1000W | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, PMBus™, Remote Sense, Universal Input | Chassis Mount | 10.30" L x 5.00" W x 1.54" H (261.6mm x 127.0mm x 39.1mm) |
|
XS500-24N-000AC/DC CONVERTER 24V 504W EXCELSYS / Advanced Energy |
63 |
|
规格书 |
Xsolo (500W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 380 VDC | 24V | - | - | - | - | - | 21 A | - | - | - | - | - | 504W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.33" L x 5.04" W x 1.54" H (237.0mm x 128.0mm x 39.1mm) |
|
|

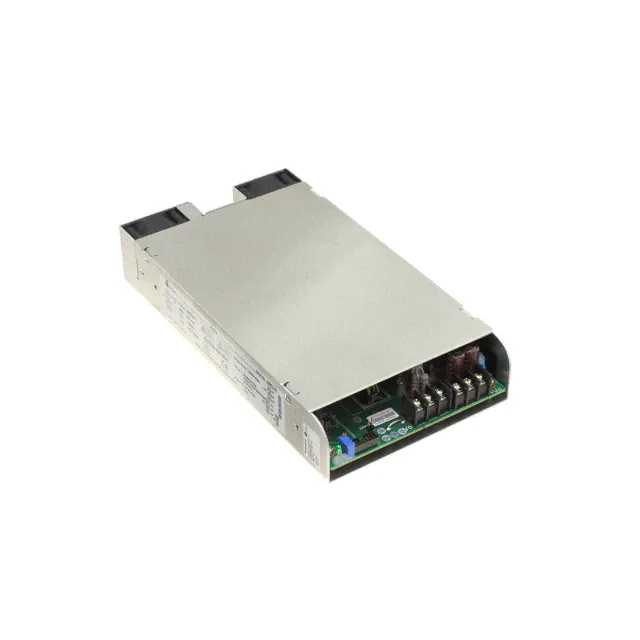

XS1000-48N-004AC/DC CONVERTER 48V 1008W EXCELSYS / Advanced Energy |
10 |
|
规格书 |
Xsolo (1000W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 380 VDC | 48V | - | - | - | - | - | 21 A | - | - | - | - | - | 1008W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.37" L x 5.04" W x 1.60" H (238.0mm x 128.0mm x 40.6mm) |
