交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

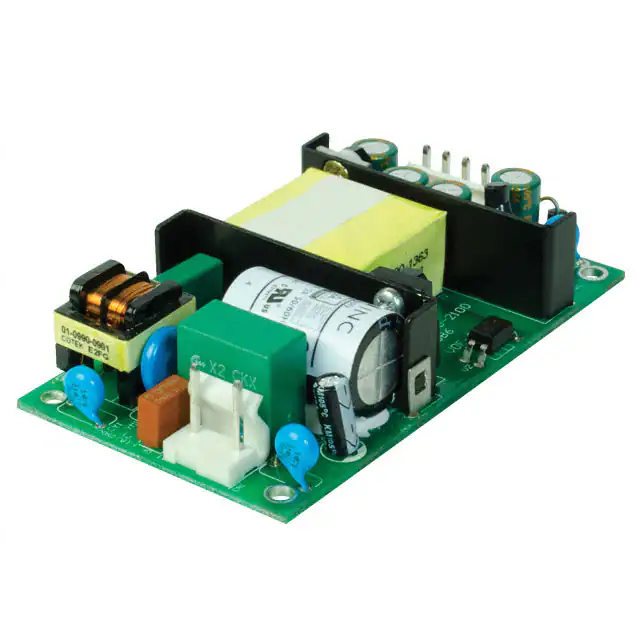

VOF-30-15AC/DC CONVERTER 15V 30W |
0 |
|
规格书 |
VOF-30 (30W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.54" L x 2.00" W x 0.83" H (90.0mm x 50.8mm x 21.1mm) |
|
SCS4048AC/DC CONVERTER 48V 40W |
216 |
|
规格书 |
SC40 (40W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 900 mA | - | - | - | - | - | 40W (55W Forced Air) | ITE (Commercial) | 4.3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) |
|
LM350-10B24AC/DC CONVERTER 24V 350W |
536 |
|
规格书 |
LM350-10Bxx (350W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 373 VDC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
|
MB60S48KAC/DC CONVERTER 48V 60W |
0 |
|
规格书 |
MB60S (60W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | Medical | 4 kV | -10°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) |
|
MB60S48CAC/DC CONVERTER 48V 60W |
0 |
|
规格书 |
MB60S (60W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | Medical | 4 kV | -10°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) |
|
|
MB60S18CAC/DC CONVERTER 18V 60W |
0 |
|
- |
MB60S (60W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 18V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 60W | Medical | 4 kV | -10°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) |
|

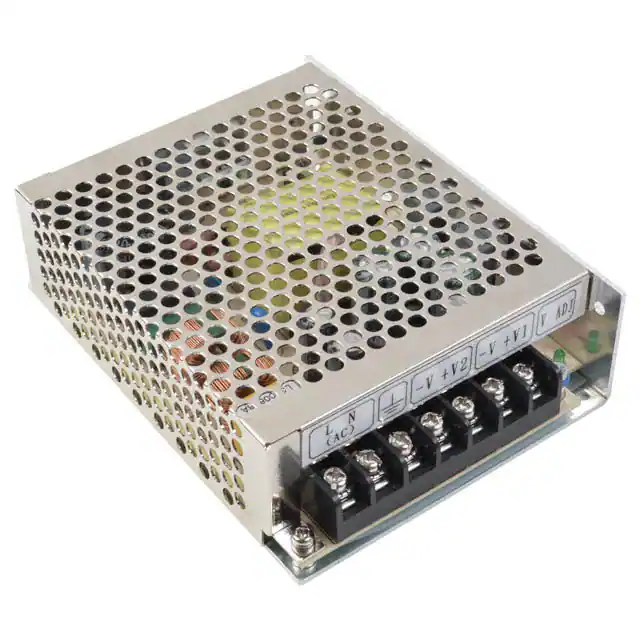

VGD-60-D524AC/DC CONVERTER 5V 24V 60W |
0 |
|
规格书 |
VGD-60 (60W) | Bulk | Obsolete | Enclosed | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 6 A | 2.2 A | - | - | - | - | 60W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
|
|
VGD-60-D512AC/DC CONVERTER 5V 12V 60W |
0 |
|
规格书 |
VGD-60 (60W) | Bulk | Obsolete | Enclosed | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 6 A | 4 A | - | - | - | - | 60W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.90" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
|
SCS6028AC/DC CONVERTER 28V 60W |
2,056 |
|
规格书 |
SC60 (60W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 28V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 60W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.34" H (127.0mm x 76.2mm x 34.0mm) |
|
|
SCS6048AC/DC CONVERTER 48V 60W |
258 |
|
规格书 |
SC60 (60W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 60W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.34" H (127.0mm x 76.2mm x 34.0mm) |
|
|
LM350-10B48AC/DC CONVERTER 48V 350W |
704 |
|
规格书 |
LM350-10Bxx (350W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 373 VDC | 48V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 350W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
|
HWS30-48/AAC/DC CONVERTER 48V 30W |
124 |
|
规格书 |
HWS (30W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 650 mA | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.74" L x 1.24" W x 3.23" H (95.0mm x 31.5mm x 82.0mm) |
|
MS6515FAC/DC CONVERTER 15V 65W |
106 |
|
规格书 |
MS65 (65W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 65W | Medical | - | 0°C ~ 50°C | Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.15" H (127.0mm x 76.0mm x 29.2mm) |
|

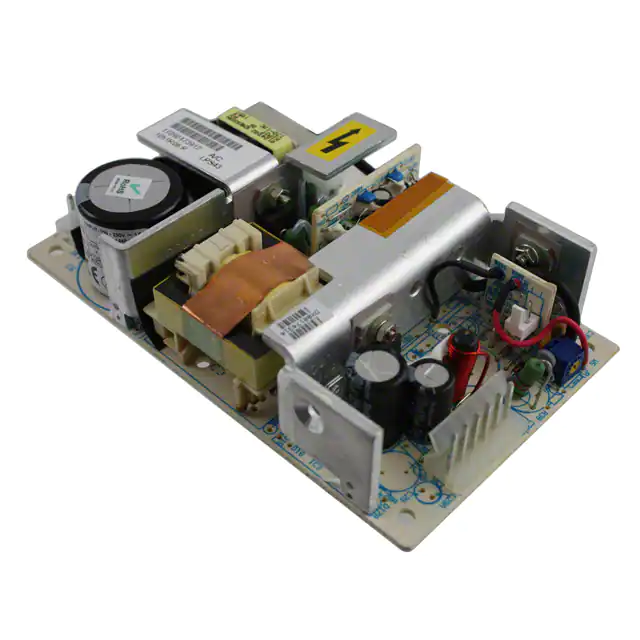

LPS43AC/DC CONVERTER 12V 40W |
251 |
|
规格书 |
LPS40 (40W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 40W (55W Forced Air) | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.14" H (127.0mm x 76.2mm x 29.0mm) |
|
ASM30-240-BNH-0F0AC/DC CONVERTER 24V 30W |
118 |
|
规格书 |
ASM30 | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 30W | ITE (Commercial), Medical | 4 kV | -40°C ~ 80°C | - | - | 3.00" L x 1.60" W x 0.85" H (76.2mm x 40.6mm x 21.7mm) |
|
GB60S15KAC/DC CONVERTER 15V 60W |
0 |
|
规格书 |
GB60S (60W) | Bulk | Active | Open Frame | 1 | 80 ~ 270 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial) | 4 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.00" H (76.2mm x 50.8mm x 25.4mm) |
|

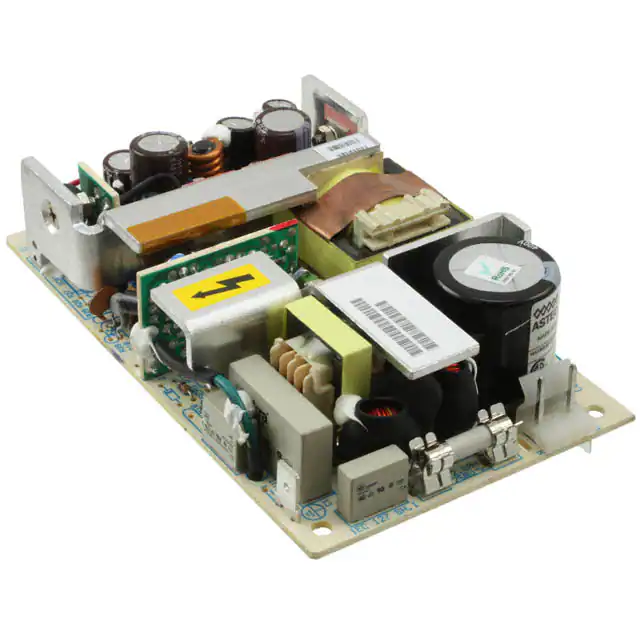

LPT43AC/DC CONVERTER 5V +/-12V 40W |
145 |
|
规格书 |
LPT40 (40W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 6 A | 500 mA | 500 mA | - | - | - | 40W (55W Forced Air) | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.14" H (127.0mm x 76.2mm x 29.0mm) |
|
ABC40-3003GAC/DC CONVERTER 3.3V 5.2V -12.8V |
0 |
|
规格书 |
ABC40 (40W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 3.3V | 5.2V | -12.8V | - | - | - | 6 A | 3 A | 500 mA | - | - | - | 40W | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
MTW15-51515AC/DC CONVERTER 5V +/-15V 15W |
402 |
|
规格书 |
MTW (15W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 265 VAC | 5V | 15V | -15V | - | - | - | 2 A | 300 mA | 200 mA | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 1.97" W x 1.02" H (127.0mm x 50.0mm x 26.0mm) |
|

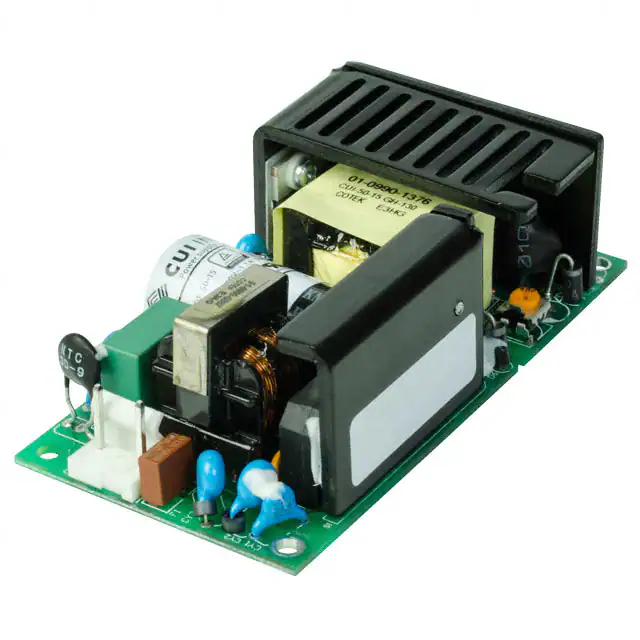

VOF-50-5AC/DC CONVERTER 5V 33W |
0 |
|
规格书 |
VOF-50 (50W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 5V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 33W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) |
