交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGSM-250C-30AC-DC, 250 W, 30 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 30V | - | - | - | - | - | 4 A | - | - | - | - | - | 120W | Medical | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.57" H (121.7mm x 63.0mm x 39.9mm) |
|
|
VGSM-250C-12-CSAC-DC, 250 W, 12 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 120W (250W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.97" H (121.7mm x 63.0mm x 50.0mm) |
|
|
VGSM-250C-48-CSAC-DC, 250 W, 48 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W (250W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.97" H (121.7mm x 63.0mm x 50.0mm) |
|
|
VGS-250C-15-CFAC-DC, 250 W, 15 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 120W (250W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 2.00" H (121.7mm x 63.0mm x 50.8mm) |
|
|
VGS-250C-24-CSAC-DC, 250 W, 24 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 120W (250W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.97" H (121.7mm x 63.0mm x 50.0mm) |
|
|
VGS-250C-19AC-DC, 250 W, 19 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 19V | - | - | - | - | - | 6.31 A | - | - | - | - | - | 120W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.57" H (121.7mm x 63.0mm x 39.9mm) |
|
|
VGS-250C-19-CFAC-DC, 250 W, 19 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 19V | - | - | - | - | - | 6.31 A | - | - | - | - | - | 120W (250W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 2.00" H (121.7mm x 63.0mm x 50.8mm) |
|
|
VGS-250C-19-CSAC-DC, 250 W, 19 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 19V | - | - | - | - | - | 6.31 A | - | - | - | - | - | 120W (250W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.97" H (121.7mm x 63.0mm x 50.0mm) |
|
|
VGSM-250C-48AC-DC, 250 W, 48 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W | Medical | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.57" H (121.7mm x 63.0mm x 39.9mm) |
|
|
VGSM-250C-19-CFAC-DC, 250 W, 19 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 19V | - | - | - | - | - | 6.31 A | - | - | - | - | - | 120W (250W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 2.00" H (121.7mm x 63.0mm x 50.8mm) |
|
|
VGSM-250C-48-CFAC-DC, 250 W, 48 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W (250W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 2.00" H (121.7mm x 63.0mm x 50.8mm) |
|
|
VGS-250C-30AC-DC, 250 W, 30 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 30V | - | - | - | - | - | 4 A | - | - | - | - | - | 120W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.57" H (121.7mm x 63.0mm x 39.9mm) |
|
|
VGSM-250C-15-CSAC-DC, 250 W, 15 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 120W (250W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.97" H (121.7mm x 63.0mm x 50.0mm) |
|
|
VGSM-250C-15-CFAC-DC, 250 W, 15 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 120W (250W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 2.00" H (121.7mm x 63.0mm x 50.8mm) |
|
|
VGS-250C-48-CSAC-DC, 250 W, 48 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W (250W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.97" H (121.7mm x 63.0mm x 50.0mm) |
|
|
VGS-250C-30-CFAC-DC, 250 W, 30 VDC, SINGLE OUT |
0 |
|
规格书 |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 30V | - | - | - | - | - | 4 A | - | - | - | - | - | 120W (250W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 2.00" H (121.7mm x 63.0mm x 50.8mm) |
|

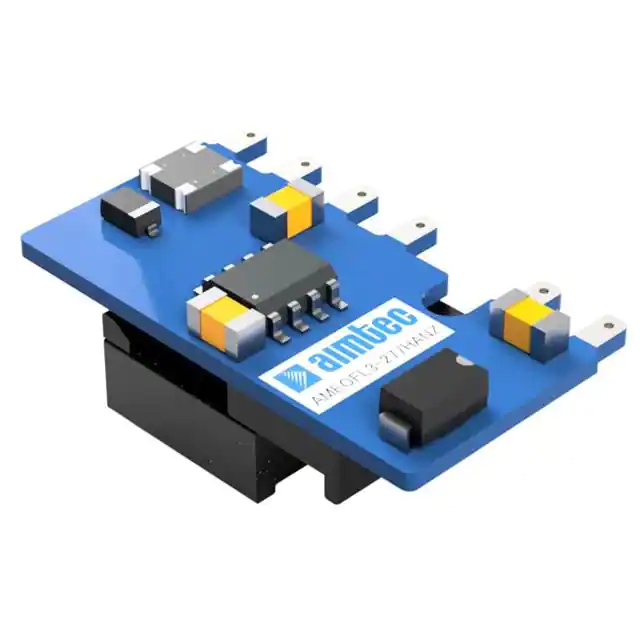

AMEOFL3-9S277HANZAC/DC CONVERTER 9V 2.99W |
3 |
|
规格书 |
AMEOFL3-277HANZ (2.99W) | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 9V | - | - | - | - | - | 333 mA | - | - | - | - | - | 2.99W | Household Appliances, ITE (Commercial) | 3 kV | -40°C ~ 85°C | DC Input Capable, Universal Input | Chassis Mount | 1.04" L x 0.50" W x 0.47" H (26.4mm x 12.7mm x 11.9mm) |
|

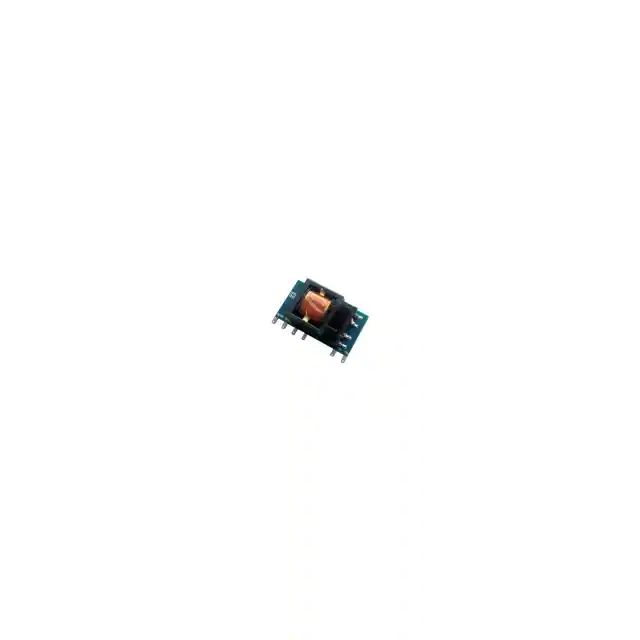

AMEOFL3-12S277HANZAC/DC CONVERTER 12V 3W |
1 |
|
规格书 |
AMEOFL3-277HANZ (3W) | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 12V | - | - | - | - | - | 250 mA | - | - | - | - | - | 3W | Household Appliances, ITE (Commercial) | 3 kV | -40°C ~ 85°C | DC Input Capable, Universal Input | Chassis Mount | 1.04" L x 0.50" W x 0.47" H (26.4mm x 12.7mm x 11.9mm) |
|
|
Switching Power Supply ALRS24VR65TAAC/DC CONVERTER 24V 15W |
9 |
|
规格书 |
- | Tape & Box (TB) | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 650 mA | - | - | - | - | - | - | ITE (Commercial) | 1.5 kV | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 2.76" L x 1.57" W x 1.30" H (70.1mm x 39.9mm x 33.0mm) |
|
|
Switching Power Supply ALRS24V1R1ATAC/DC CONVERTER 24V 25W |
10 |
|
规格书 |
- | Tape & Box (TB) | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.1 A | - | - | - | - | - | - | ITE (Commercial) | 1.5 kV | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 3.35" L x 2.28" W x 1.30" H (85.1mm x 57.9mm x 33.0mm) |
