上传BOM
交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASM400S-36AC/DC CONVERTER 36V 198W Astrodyne TDI |
11 |
|
规格书 |
ASM400S (400W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 5.5 A | - | - | - | - | - | 198W (400W Forced Air) | Medical | 4 kV | -20°C ~ 40°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) |
|
ASM550-480-BET-S00AC/DC CONVERTER 48V 552W Astrodyne TDI |
24 |
|
规格书 |
ASM550 (550W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC, 110 ~ 380 VDC | 48V | - | - | - | - | - | 11.5 A | - | - | - | - | - | 552W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.36" W x 1.58" H (177.8mm x 110.7mm x 40.1mm) |
|
T100116243-LFAC/DC CONVERTER Astrodyne TDI |
22 |
|
规格书 |
- | Box | Active | Enclosed | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
T100106170-F180D00LFMERCURYFLEX RECTIFIER, 3.8KW Astrodyne TDI |
20 |
|
规格书 |
MercuryFlex (3800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 180V | - | - | - | - | - | 25 A | - | - | - | - | - | 3800W | ITE (Commercial) | 3 kV | -30°C ~ 55°C | Adjustable Output, Universal Input, Programmable, CV, CC, CP | Rack Mount | 15.15" L x 4.25" W x 3.42" H (384.7mm x 108.0mm x 86.8mm) |
|
|
T100106170-F250D00LFMERCURYFLEX RECTIFIER, 3.8KW 2U Astrodyne TDI |
16 |
|
规格书 |
MercuryFlex (3800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 250V | - | - | - | - | - | 17.5 A | - | - | - | - | - | 3800W | ITE (Commercial) | 3 kV | -30°C ~ 55°C | Adjustable Output, Universal Input, Programmable, CV, CC, CP | Rack Mount | 15.15" L x 4.25" W x 3.42" H (384.7mm x 108.0mm x 86.8mm) |
|

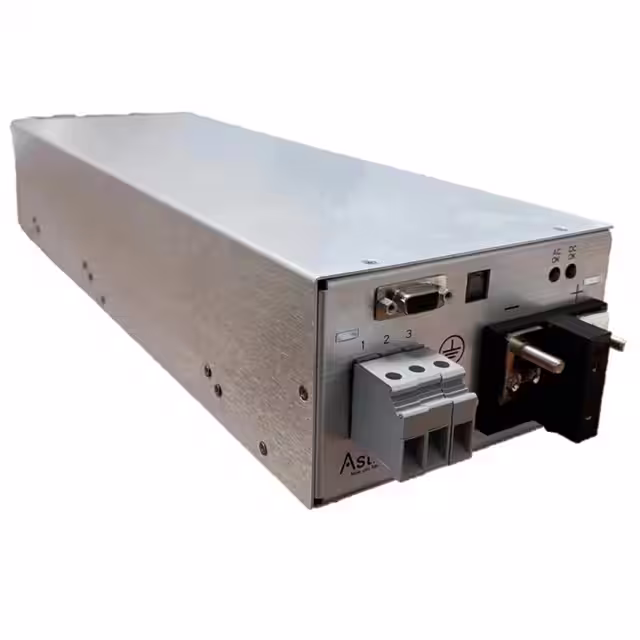

T100116107-LFAC/DC CONVERTER RECTIFIER 5.5KW Astrodyne TDI |
9 |
|
规格书 |
LiquaCore (5500W) | Box | Active | Enclosed | 1 | 380 ~ 480 VAC (3 Phase) | 0 ~ 60V | - | - | - | - | - | 120 A | - | - | - | - | - | 5500W | ITE (Commercial) | 6 kV | 5°C ~ 50°C | Adjustable, CC, CP, CV, Modular, Programmable, Water Cooled Power Supply | Rack Mount | 19.67" L x 5.87" W x 3.46" H (499.6mm x 149.1mm x 87.9mm) |
|
ASL-1503AC/DC CONVERTER 15V 15W Astrodyne TDI |
32 |
|
规格书 |
ASL15 (15W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.10" W x 0.87" H (76.2mm x 53.3mm x 22.2mm) |
|
|
ASL-1500AC/DC CONVERTER 3.3V 15W Astrodyne TDI |
22 |
|
规格书 |
ASL15 (15W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 3.3V | - | - | - | - | - | 3.5 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.10" W x 0.87" H (76.2mm x 53.3mm x 22.2mm) |
|
|
ASL-0101AC/DC CONVERTER 5V 10W Astrodyne TDI |
59 |
|
规格书 |
ASL10 (10W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial), Medical | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.28" L x 2.00" W x 0.83" H (57.9mm x 50.8mm x 21.2mm) |
|
|
ASL-0102AC/DC CONVERTER 12V 10W Astrodyne TDI |
41 |
|
规格书 |
ASL10 (10W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 850 mA | - | - | - | - | - | 10W | ITE (Commercial), Medical | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.28" L x 2.00" W x 0.83" H (57.9mm x 50.8mm x 21.2mm) |
