交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

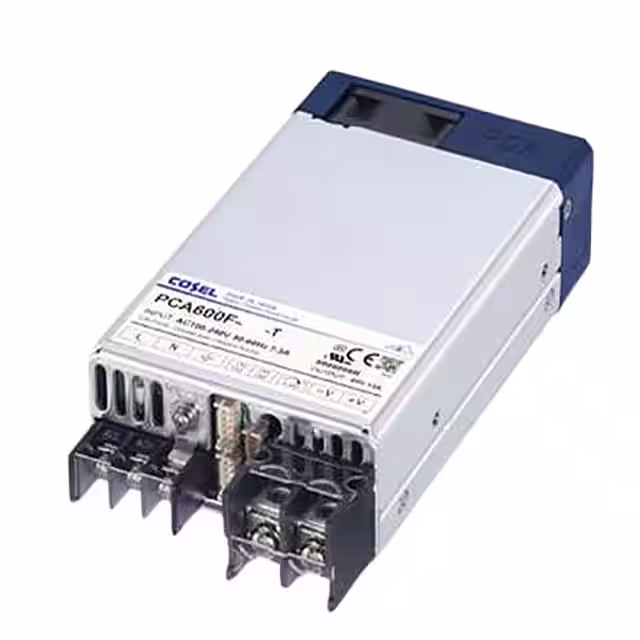

PCA600F-48-TAC/DC CONVERTER 48V 624W |
114 |
|
规格书 |
PCA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 88 ~ 370 VDC | 48V | - | - | - | - | - | 13 A | - | - | - | - | - | 624W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) |
|

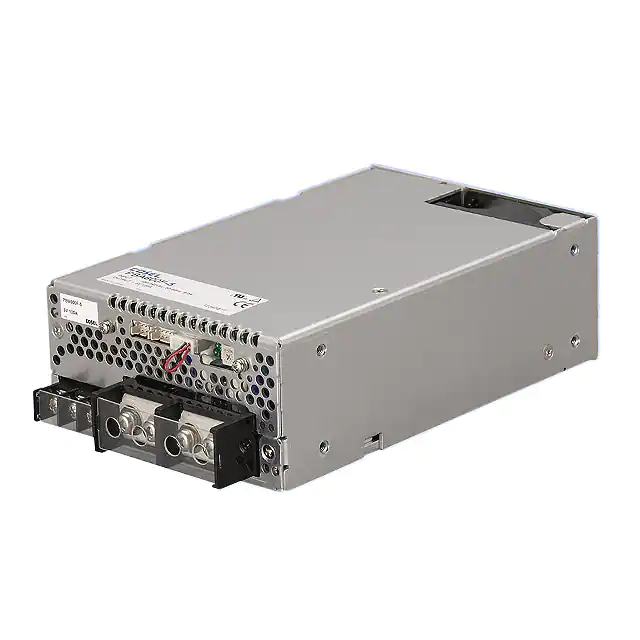

PBA600F-36AC/DC CONVERTER 36V 600W |
47 |
|
规格书 |
PBA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 18 A | - | - | - | - | - | 600W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|
GPFM250-48GAC/DC CONVERTER 48V 180W |
41 |
|
规格书 |
GPFM250 (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 3.8 A | - | - | - | - | - | 180W (250W Forced Air) | Medical | - | 0°C ~ 50°C | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.00" W x 1.75" H (203.2mm x 127.0mm x 44.5mm) |
|
|
GPFM250-24GAC/DC CONVERTER 24V 180W |
28 |
|
规格书 |
GPFM250 (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 180W (250W Forced Air) | Medical | - | 0°C ~ 50°C | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.00" W x 1.75" H (203.2mm x 127.0mm x 44.5mm) |
|

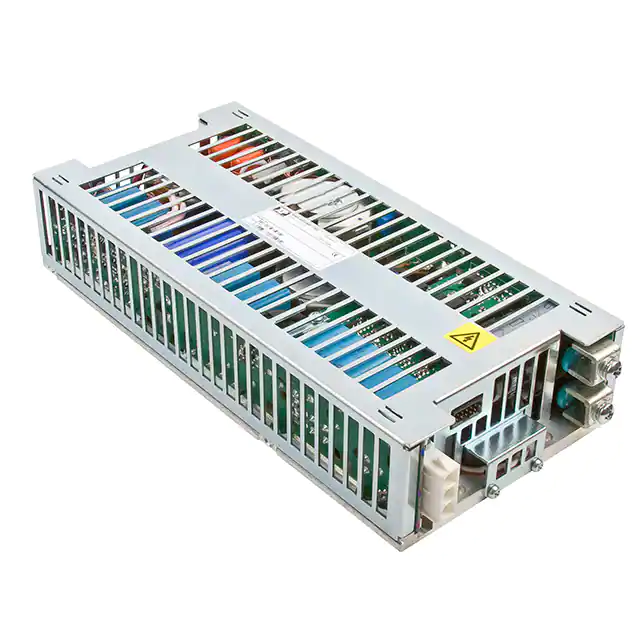

CCH400PS24AC/DC CONVERTER 24V 411W |
201 |
|
规格书 |
CCH400 (400W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 17 A | - | - | - | - | - | 411W | ITE (Commercial) | 3 kV | -40°C ~ 85°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.43" L x 4.02" W x 1.69" H (214.1mm x 102.1mm x 42.9mm) |
|
|
CCH400PS28AC/DC CONVERTER 28V 409W |
57 |
|
规格书 |
CCH400 (400W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 14.5 A | - | - | - | - | - | 409W | ITE (Commercial) | 3 kV | -40°C ~ 85°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.43" L x 4.02" W x 1.69" H (214.1mm x 102.1mm x 42.9mm) |
|

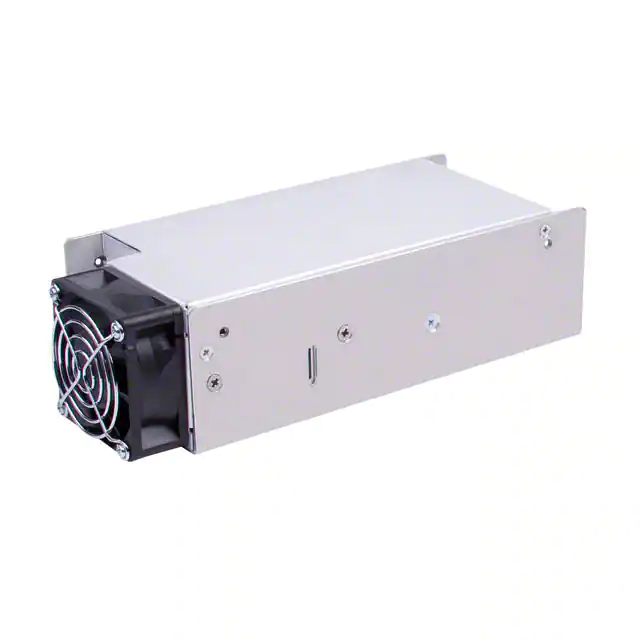

MHP650PS28-EFAC/DC CONVERTER 28V 644W |
26 |
|
规格书 |
MHP (650W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 23 A | - | - | - | - | - | 644W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.18" L x 4.00" W x 2.50" H (233.2mm x 101.6mm x 63.5mm) |
|
HWS300-24/HDAC/DC CONVERTER 24V 300W |
69 |
|
规格书 |
HWS/HD (300W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 14 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -40°C ~ 71°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.50" L x 2.40" W x 3.23" H (165.1mm x 61.0mm x 82.0mm) |
|
RFE1000-24-YAC/DC CONVERTER 24V 960W |
41 |
|
规格书 |
RFE (1000) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 40 A | - | - | - | - | - | 960W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.00" L x 5.00" W x 1.60" H (305.0mm x 127.0mm x 41.0mm) |
|
TF1500A60KAC/DC CONVERTER 60V 1500W |
28 |
|
规格书 |
TF1500 (1500W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC, 127 ~ 370 VDC | 60V | - | - | - | - | - | 25 A | - | - | - | - | - | 1500W | ITE (Commercial) | 3 kV | -25°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 11.02" L x 5.00" W x 2.52" H (279.9mm x 127.0mm x 64.0mm) |
|

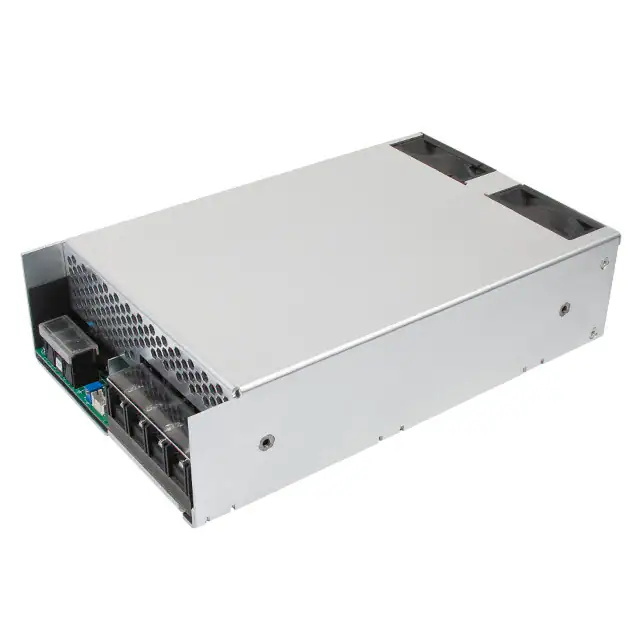

SHP1000PS24AC/DC CONVERTER 24V 1000W |
274 |
|
规格书 |
SHP (1000W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 50 A | - | - | - | - | - | 1000W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.55" L x 5.90" W x 2.40" H (242.6mm x 149.8mm x 61.0mm) |
|
RSP-3000-48AC/DC CONVERTER 48V 3000W |
74 |
|
规格书 |
RSP-3000 (3000W) | Box | Active | Enclosed | 1 | 180 ~ 264 VAC, 254 ~ 370 VDC | 48V | - | - | - | - | - | 62.5 A | - | - | - | - | - | 3000W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off | Chassis Mount | 10.94" L x 7.00" W x 2.50" H (278.0mm x 177.8mm x 63.5mm) |
|
|
CCH600PS12AC/DC CONVERTER 12V 603W |
117 |
|
规格书 |
CCH600 (600W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 50 A | - | - | - | - | - | 603W | ITE (Commercial) | 3 kV | -40°C ~ 85°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.43" L x 4.02" W x 1.69" H (214.1mm x 102.1mm x 42.9mm) |
|
|
CCH600PS28AC/DC CONVERTER 28V 605W |
71 |
|
规格书 |
CCH600 (600W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 21.5 A | - | - | - | - | - | 605W | ITE (Commercial) | 3 kV | -40°C ~ 85°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.43" L x 4.02" W x 1.69" H (214.1mm x 102.1mm x 42.9mm) |
|
SWS1000L-3AC/DC CONVERTER 3.3V 1000W |
39 |
|
规格书 |
SWS1000L (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 3.3V | - | - | - | - | - | 200 A | - | - | - | - | - | 1000W | Medical | 4 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.45" L x 5.91" W x 2.40" H (240.0mm x 150.0mm x 61.0mm) |
|
HWS600-48AC/DC CONVERTER 48V 600W |
62 |
|
规格书 |
HWS (600W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 13 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Universal Input | Chassis Mount | 6.50" L x 3.94" W x 3.23" H (165.1mm x 100.1mm x 82.0mm) |
|
|
HWS600-12AC/DC CONVERTER 12V 600W |
59 |
|
规格书 |
HWS (600W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 53 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Universal Input | Chassis Mount | 6.50" L x 3.94" W x 3.23" H (165.1mm x 100.1mm x 82.0mm) |
|
CUS1500M-48AC/DC CONVERTER 48V 1536W |
27 |
|
规格书 |
CUS1500M (1500W) | Box | Active | Enclosed | 1 | 85 ~ 265 VAC, 120 ~ 340 VDC | 48V | - | - | - | - | - | 32 A | - | - | - | - | - | 1536W | ITE (Commercial), Medical | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 10.28" L x 5.00" W x 2.48" H (261.0mm x 127.0mm x 63.0mm) |
|

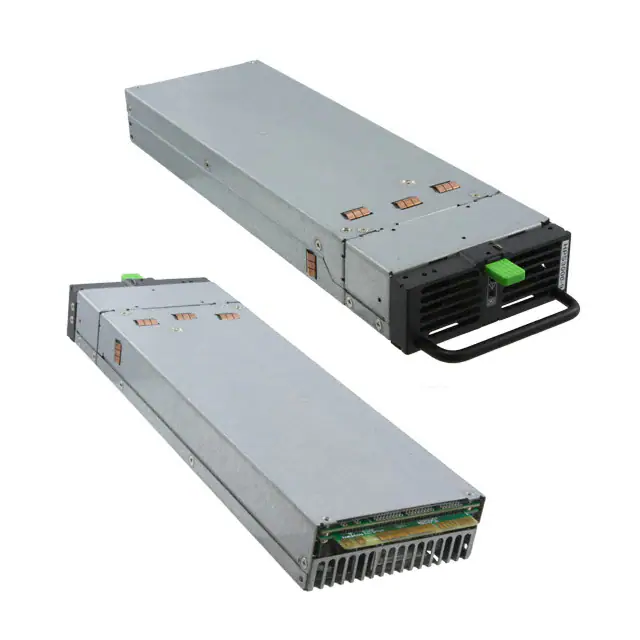

HPS3000-9AC/DC CONVERTER 48V 3000W |
38 |
|
规格书 |
HPS3000 (3000W) | Tray | Active | Front End | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 62 A | - | - | - | - | - | 3000W | ITE (Commercial) | - | -10°C ~ 40°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Standby Output, Universal Input | Rack Mount | 12.90" L x 4.20" W x 1.57" H (327.7mm x 106.7mm x 39.9mm) |
|
FPS1000-48AC/DC CONVERTER 48V 1000W |
52 |
|
规格书 |
FPS1000 (1000W) | Bulk | Active | Front End | 1 | 85 ~ 265 VAC, 120 ~ 360 VDC | 48V | - | - | - | - | - | 21 A | - | - | - | - | - | 1000W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Rack Mount | 11.42" L x 5.00" W x 1.61" H (290.0mm x 127.0mm x 41.0mm) |
