上传BOM
交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM600-12B24-QAC/DC CONVERTER 24V 600W Mornsun America, LLC |
1 |
|
规格书 |
LM600-12Bxx-Q (600W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 176 ~ 264 VAC, 240 ~ 370 VDC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 600W | ITE (Commercial) | 4 kV | -20°C ~ 60°C (With Derating) | Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.52" L x 4.17" W x 1.58" H (267.3mm x 106.0mm x 40.0mm) |
|
|
LMF750-23B48UHAC/DC CONVERTER 48V 754W Mornsun America, LLC |
1 |
|
规格书 |
LMF750-23BxxUH (750W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | - | - | 15.7 A | - | - | - | - | - | 754W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 9.33" L x 3.94" W x 1.61" H (237.0mm x 100.0mm x 41.0mm) |
|

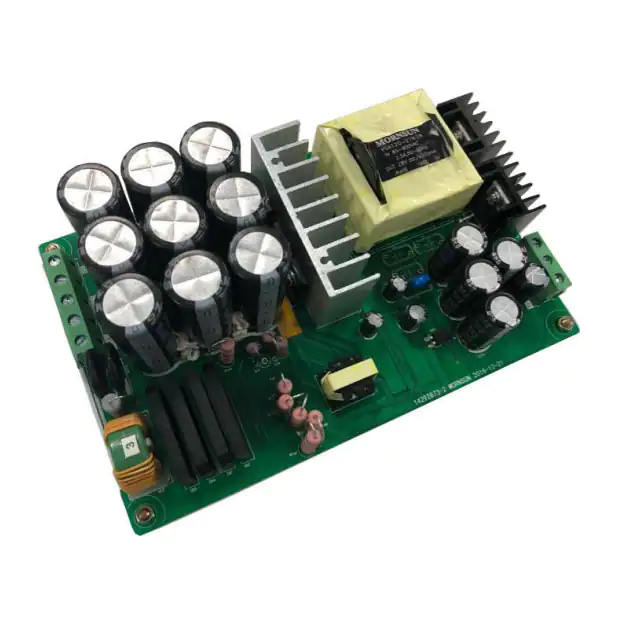

PVA120-27B24AC/DC CONVERTER 24V 120W Mornsun America, LLC |
0 |
|
规格书 |
PVA120-27Bxx (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 900 VAC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 120W | ITE (Commercial) | 4 kV | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 6.69" L x 4.21" W x 0.08" H (170.0mm x 107.0mm x 2.0mm) |
|
|
MBP300-2A27D27220AC/DC BATTERY CHARGING MODULE PO Mornsun America, LLC |
0 |
|
- |
MBP300-2A27D27220 (300W) | Tray | Obsolete | Enclosed | 2 | 165 ~ 264 VAC, 200 ~ 370 VDC | 27V | 27V | - | - | - | - | 100 mA | 500 mA | 1 A | - | - | - | 63W | ITE (Commercial) | 2.5 kV | -40°C ~ 70°C | Adjustable Output | Chassis Mount | 7.87" L x 4.41" W x 1.77" H (200.0mm x 112.0mm x 45.0mm) |
|
|
LMF1000-20B54ENCLOSED AC DC CONVERTERS 1 OUTP Mornsun America, LLC |
1 |
|
规格书 |
LMF1000-20Bxx | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 54V | - | - | - | - | - | 18.7 A | - | - | - | - | - | 1010W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.48" L x 5.00" W x 1.59" H (190.0mm x 127.0mm x 40.5mm) |
|
|
LMF1000-20B27ENCLOSED AC DC CONVERTERS 1 OUTP Mornsun America, LLC |
0 |
|
规格书 |
LMF1000-20Bxx | Bulk | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 27V | - | - | - | - | - | 37.3 A | - | - | - | - | - | 1007W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.48" L x 5.00" W x 1.59" H (190.0mm x 127.0mm x 40.5mm) |
|
|
LMF1000-20B36ENCLOSED AC DC CONVERTERS 1 OUTP Mornsun America, LLC |
0 |
|
规格书 |
LMF1000-20Bxx | Bulk | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 28.8 A | - | - | - | - | - | 1037W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.48" L x 5.00" W x 1.59" H (190.0mm x 127.0mm x 40.5mm) |
|
|
LMF1000-20B15ENCLOSED AC DC CONVERTERS 1 OUTP Mornsun America, LLC |
0 |
|
规格书 |
LMF1000-20Bxx | Bulk | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 64 A | - | - | - | - | - | 960W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.48" L x 5.00" W x 1.59" H (190.0mm x 127.0mm x 40.5mm) |
|
|
LMF1000-20B24ENCLOSED AC DC CONVERTERS 1 OUTP Mornsun America, LLC |
0 |
|
规格书 |
LMF1000-20Bxx | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 42 A | - | - | - | - | - | 1008W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.48" L x 5.00" W x 1.59" H (190.0mm x 127.0mm x 40.5mm) |
|
|
LMF1000-20B48ENCLOSED AC DC CONVERTERS 1 OUTP Mornsun America, LLC |
0 |
|
规格书 |
LMF1000-20Bxx | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 21 A | - | - | - | - | - | 1008W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.48" L x 5.00" W x 1.59" H (190.0mm x 127.0mm x 40.5mm) |
