交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

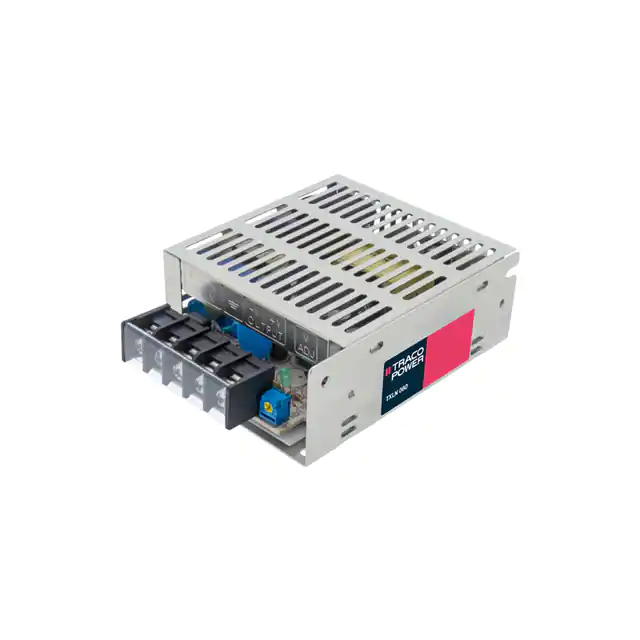

TXLN 060-148AC/DC CONVERTER 48V 62W Traco Power |
9 |
|
规格书 |
TXLN 060 (60W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 125 ~ 375 VDC | 48V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 62W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.38" H (99.0mm x 82.0mm x 35.0mm) |
|
TMW 24-112AC/DC CONVERTER 12V 24W Traco Power |
5 |
|
规格书 |
TMW 24 (24W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 2 A | - | - | - | - | - | 24W | Household Appliances, ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | - | Chassis Mount | 2.09" L x 2.01" W x 0.97" H (53.0mm x 51.0mm x 24.5mm) |
|
TXLN 060-103AC/DC CONVERTER 3.3V 40W Traco Power |
7 |
|
规格书 |
TXLN 060 (60W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 125 ~ 375 VDC | 3.3V | - | - | - | - | - | 12 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.38" H (99.0mm x 82.0mm x 35.0mm) |
|
TXL 060-15SAC/DC CONVERTER 15V 60W Traco Power |
22 |
|
规格书 |
TXL 060 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 375 VDC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.38" H (99.1mm x 82.0mm x 35.1mm) |
|
TPP 40-148E-JAC/DC CONVERTER 48V 40W Traco Power |
10 |
|
规格书 |
TPP 40E-J (40W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 840 mA | - | - | - | - | - | 40W | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.30" L x 2.20" W x 1.20" H (109.2mm x 55.9mm x 30.5mm) |
|
TML 20115CAC/DC CONVERTER 15V 20W Traco Power |
18 |
|
规格书 |
TML (20W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 100 ~ 375 VDC | 15V | - | - | - | - | - | 1.34 A | - | - | - | - | - | 20W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.78" L x 2.15" W x 1.09" H (96.0mm x 54.6mm x 27.7mm) |
|
TPI 125-148A-JAC/DC CONVERTER 48V 100W Traco Power |
13 |
|
规格书 |
TPI 125A-J (125W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 2.09 A | - | - | - | - | - | 100W (125W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 85°C | Adjustable Output, Universal Input | Chassis Mount | 3.04" L x 2.01" W x 1.16" H (77.2mm x 51.1mm x 29.5mm) |
|
|
TPI 125-136A-JAC/DC CONVERTER 36V 100W Traco Power |
6 |
|
规格书 |
TPI 125A-J (125W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 2.78 A | - | - | - | - | - | 100W (125W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 85°C | Adjustable Output, Universal Input | Chassis Mount | 3.04" L x 2.01" W x 1.16" H (77.2mm x 51.1mm x 29.5mm) |
|
TMM 24105CAC/DC CONVERTER 5V 15W Traco Power |
8 |
|
规格书 |
TMM 24 (24W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | Industrial, ITE (Commercial), Medical | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.1mm x 23.4mm) |
|
TPP 100-136A-JAC/DC CONVERTER 36V 100W Traco Power |
5 |
|
规格书 |
TPP 100A-J (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 2.78 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 4 kV | -25°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.16" H (76.2mm x 50.8mm x 29.5mm) |
