上传BOM
交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPS-45-3.3AC/DC CONVERTER 3.3V 26W MEAN WELL USA Inc. |
38 |
|
规格书 |
EPS-45 (45W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 3.3V | - | - | - | - | - | 8 A | - | - | - | - | - | 26W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
|
|
EPS-45-48AC/DC CONVERTER 48V 48W MEAN WELL USA Inc. |
8 |
|
规格书 |
EPS-45 (45W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 1 A | - | - | - | - | - | 48W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
|
RPS-45-3.3AC/DC CONVERTER 3.3V 26W MEAN WELL USA Inc. |
12 |
|
规格书 |
RPS-45 (45W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 3.3V | - | - | - | - | - | 8 A | - | - | - | - | - | 26W | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.0mm) |
|
|
RPS-45-7.5AC/DC CONVERTER 7.5V 41W MEAN WELL USA Inc. |
9 |
|
规格书 |
RPS-45 (45W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 7.5V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 41W | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.0mm) |
|
RS-35-3.3AC/DC CONVERTER 3.3V 23W MEAN WELL USA Inc. |
52 |
|
规格书 |
RS-35 (35W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 125 ~ 373 VDC | 3.3V | - | - | - | - | - | 7 A | - | - | - | - | - | 23W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.42" H (99.0mm x 82.0mm x 36.0mm) |
|
EPS-45S-3.3AC/DC CONVERTER 3.3V 26W MEAN WELL USA Inc. |
21 |
|
规格书 |
EPS-45S (45W) | Tray | Active | Open Frame | 1 | 80 ~ 264 VAC | 3.3V | - | - | - | - | - | 8 A | - | - | - | - | - | 26W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 24.0mm) |
|
RPS-60-3.3AC/DC CONVERTER 3.3V 33W MEAN WELL USA Inc. |
50 |
|
规格书 |
RPS-60 (60W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 3.3V | - | - | - | - | - | 10 A | - | - | - | - | - | 33W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
|
|
RPS-45-15AC/DC CONVERTER 15V 45W MEAN WELL USA Inc. |
38 |
|
规格书 |
RPS-45 (45W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 3 A | - | - | - | - | - | 45W | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.0mm) |
|
|
RPS-45-48AC/DC CONVERTER 48V 45W MEAN WELL USA Inc. |
30 |
|
规格书 |
RPS-45 (45W) | Tray | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 940 mA | - | - | - | - | - | 45W | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.0mm) |
|

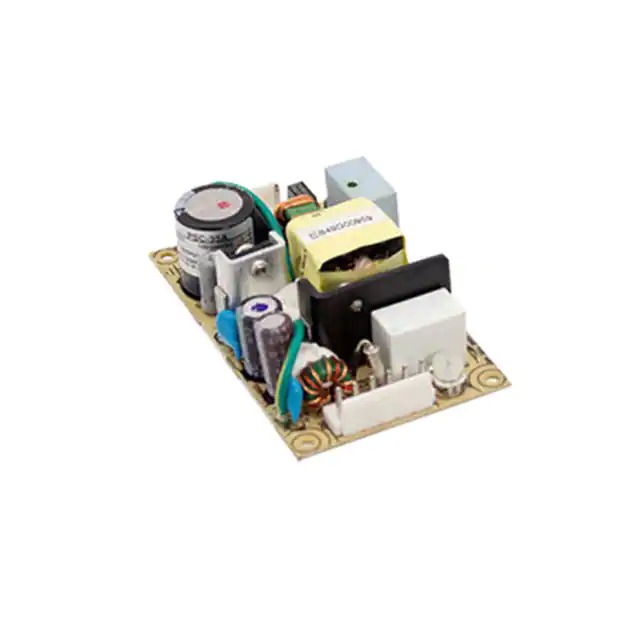

PSC-35BAC/DC CONVERTER 27.6V 27.6V 36W MEAN WELL USA Inc. |
20 |
|
规格书 |
PSC-35 (35W) | Tray | Active | Open Frame | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 27.6V | 27.6V | - | - | - | - | 850 mA | 450 mA | - | - | - | - | 36W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.33" L x 2.00" W x 0.94" H (84.6mm x 50.8mm x 24.0mm) |
