交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HRP-600-7.5AC/DC CONVERTER 7.5V 600W MEAN WELL USA Inc. |
112 |
|
规格书 |
HRP-600 (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 7.5V | - | - | - | - | - | 80 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 2.50" H (218.0mm x 105.0mm x 63.5mm) |
|
RSP-750-15AC/DC CONVERTER 15V 750W MEAN WELL USA Inc. |
34 |
|
规格书 |
RSP-750 (750W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 50 A | - | - | - | - | - | 750W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) |
|

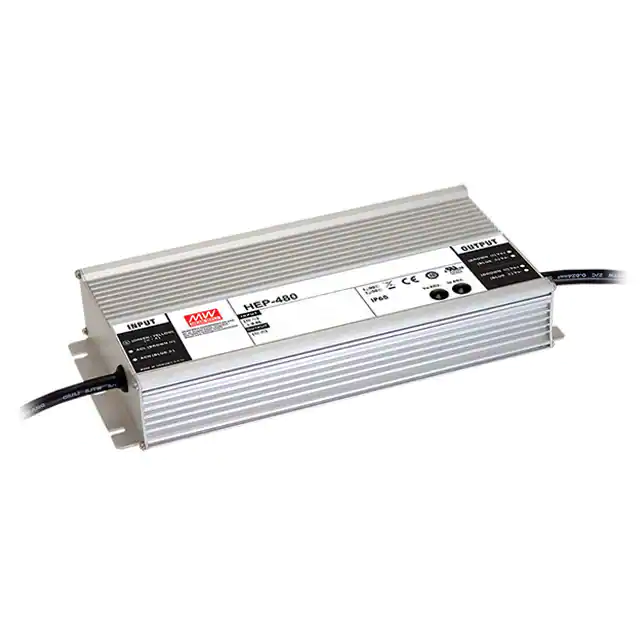

HEP-480-54AAC/DC CONVERTER 54V 481W MEAN WELL USA Inc. |
27 |
|
规格书 |
HEP-480 (480W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 127 ~ 431 VDC | 54V | - | - | - | - | - | 8.9 A | - | - | - | - | - | 481W | ITE (Commercial) | 3.75 kV | -55°C ~ 65°C (With Derating) | Adjustable Output, IP65, PFC, Universal Input | Chassis Mount | 10.31" L x 4.92" W x 1.72" H (262.0mm x 125.0mm x 43.8mm) |
|
SE-1500-48AC/DC CONVERTER 48V 1502W MEAN WELL USA Inc. |
65 |
|
规格书 |
SE-1500 (1500W) | Box | Active | Enclosed | 1 | 180 ~ 264 VAC, 254 ~ 370 VDC | 48V | - | - | - | - | - | 31.3 A | - | - | - | - | - | 1502W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | Chassis Mount | 10.94" L x 7.00" W x 2.50" H (278.0mm x 177.8mm x 63.5mm) |
|
PS-05-24AC/DC CONVERTER 24V 5W MEAN WELL USA Inc. |
396 |
|
规格书 |
PS-05 (5W) | Box | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 220 mA | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.95" L x 1.57" W x 0.79" H (75.0mm x 40.0mm x 20.0mm) |
|

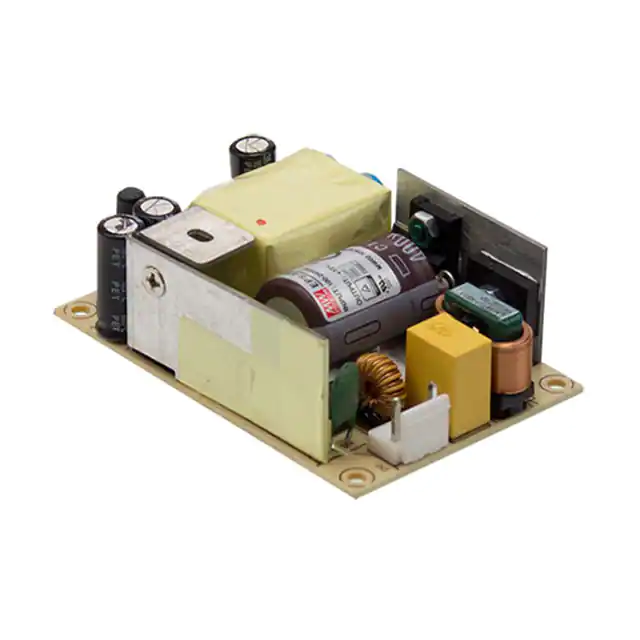

EPS-45-5AC/DC CONVERTER 5V 40W MEAN WELL USA Inc. |
1,078 |
|
规格书 |
EPS-45 (45W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
|
|
EPS-45-15AC/DC CONVERTER 15V 45W MEAN WELL USA Inc. |
450 |
|
规格书 |
EPS-45 (45W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 3 A | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
|
EPS-25-7.5AC/DC CONVERTER 7.5V 26W MEAN WELL USA Inc. |
153 |
|
规格书 |
EPS-25 (25W) | Tray | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 7.5V | - | - | - | - | - | 3.4 A | - | - | - | - | - | 26W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 24.0mm) |
|
EPS-45S-5AC/DC CONVERTER 5V 40W MEAN WELL USA Inc. |
313 |
|
规格书 |
EPS-45S (45W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 24.0mm) |
|
|
EPS-45S-15AC/DC CONVERTER 15V 45W MEAN WELL USA Inc. |
272 |
|
规格书 |
EPS-45S (45W) | Tray | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 3 A | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 24.0mm) |
