交流交流墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 应用 | 效率 | 工作温度 | 输出连接器 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
830A0062-03AC/AC WALL MNT ADPT 14VAC 1.43A Tamura |
0 |
|
- |
830A | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 14VAC | 1.43A | 20 W | - | ITE (Commercial) | - | - | Screw Terminal | - | - | - |
|
|
830A0063-03AC/AC WALL MNT ADPT 16VAC 1.25A Tamura |
0 |
|
- |
830A | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 16VAC | 1.25A | 20 W | - | ITE (Commercial) | - | - | Screw Terminal | - | - | - |
|
|
830A0064-03AC/AC WALL MNT ADPT 18VAC 1.11A Tamura |
0 |
|
- |
830A | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 18VAC | 1.11A | 20 W | - | ITE (Commercial) | - | - | Screw Terminal | - | - | - |
|
|
830A0065-03AC/AC WALL MNT ADAPTER 20VAC 1A Tamura |
0 |
|
- |
830A | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 20VAC | 1A | 20 W | - | ITE (Commercial) | - | - | Screw Terminal | - | - | - |
|
|
830A0066-03AC/AC WALL MNT ADPT 22VAC 900MA Tamura |
0 |
|
- |
830A | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 22VAC | 900mA | 20 W | - | ITE (Commercial) | - | - | Screw Terminal | - | - | - |
|
|
830A0067-03AC/AC WALL MNT ADPT 24VAC 830MA Tamura |
0 |
|
- |
830A | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 24VAC | 830mA | 20 W | - | ITE (Commercial) | - | - | Screw Terminal | - | - | - |
|

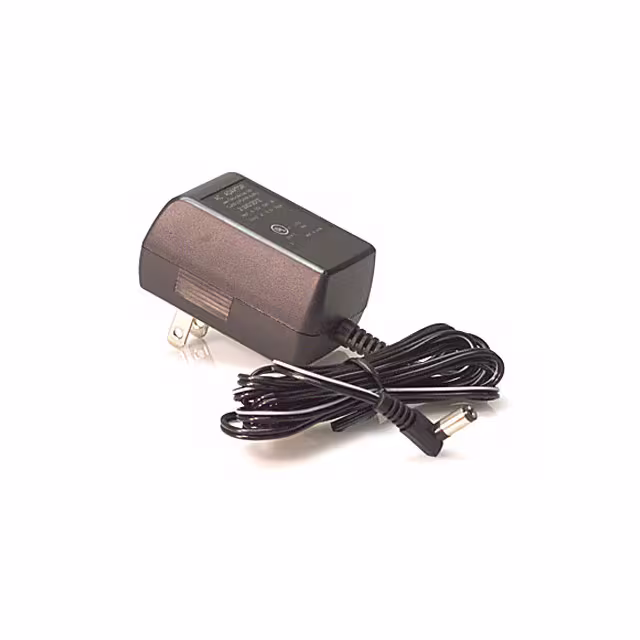

212AS12012AC/AC WALL MNT ADPT 12VAC 125MA Tamura |
0 |
|
规格书 |
212AS | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 12VAC | 125mA | 2 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 1.40" L x 1.58" W x 2.50" H (35.5mm x 40.0mm x 63.5mm) | cULus | - |
|

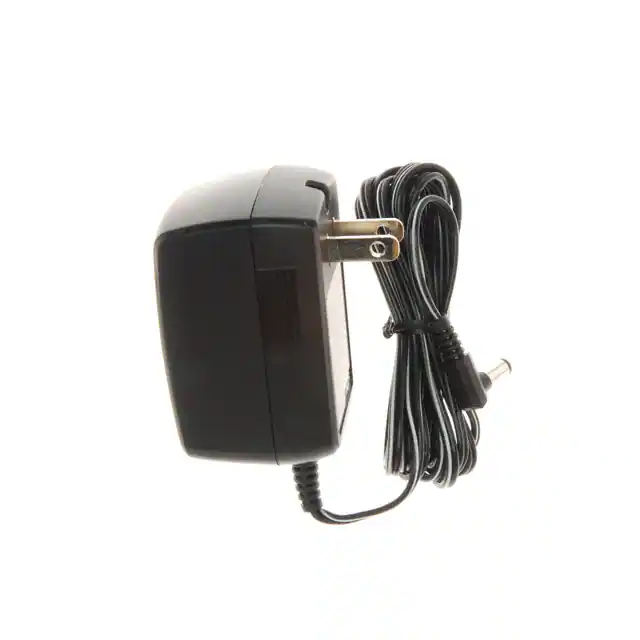

318AS12037AC/AC WALL MNT ADPT 12VAC 375MA Tamura |
0 |
|
规格书 |
318AS | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 12VAC | 375mA | 5 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 1.69" L x 1.81" W x 2.76" H (43.0mm x 46.0mm x 70.0mm) | cULus | - |
|

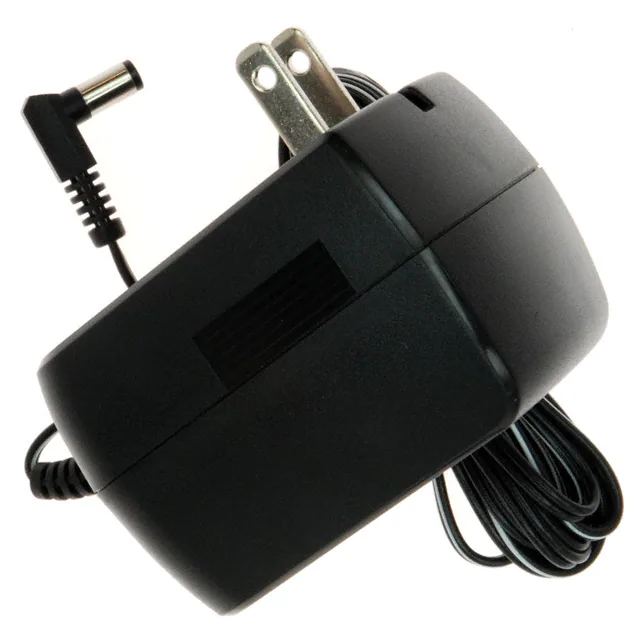

420AS12075AC/AC WALL MNT ADPT 12VAC 750MA Tamura |
0 |
|
规格书 |
420AS | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 12VAC | 750mA | 9 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 1.83" L x 2.05" W x 2.84" H (46.5mm x 52.0mm x 72.0mm) | cULus | - |
|

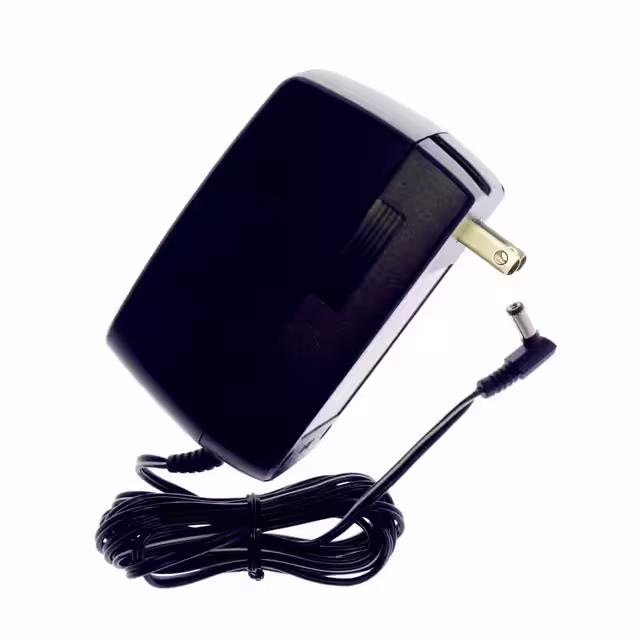

835AS12150AC/AC WALL MNT ADPT 12VAC 1.5A Tamura |
0 |
|
规格书 |
835AS | - | Obsolete | North America | Wall Mount | Fixed Blade | 120VAC | 12VAC | 1.5A | 18 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 2.44" L x 2.44" W x 4.06" H (62.0mm x 62.0mm x 103.0mm) | cULus | - |
