交流交流墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 应用 | 效率 | 工作温度 | 输出连接器 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

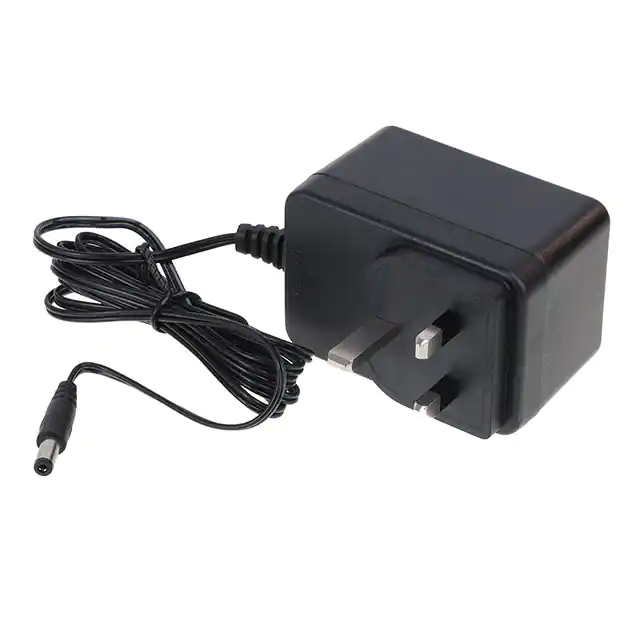

77DB-12-24AC/AC WALL MNT ADPT 24VAC 500MA |
20 |
|
规格书 |
77DB | Box | Active | United Kingdom | Wall Mount | Fixed Blade | 230VAC | 24VAC | 500mA | 12 W | - | ITE (Commercial) | - | 0°C ~ 40°C | - | 3.23" L x 2.28" W x 2.17" H (82.0mm x 58.0mm x 55.0mm) | CE, GS, TUV | - |
|

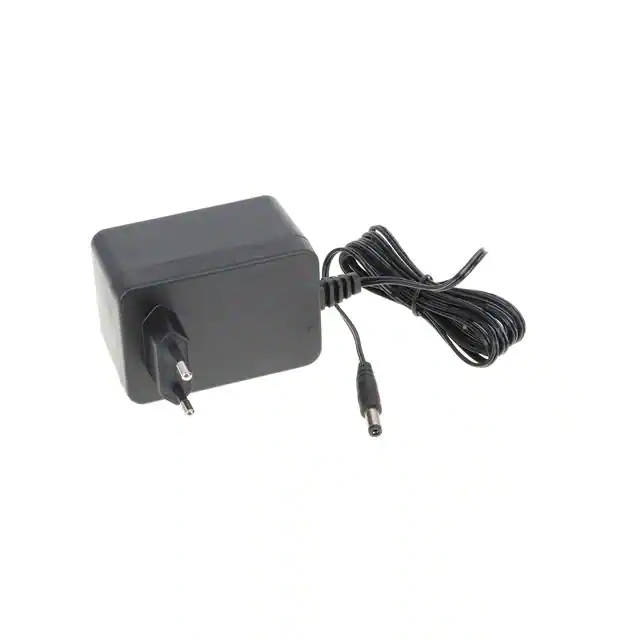

77DE-12-12AC/AC WALL MNT ADAPTER 12VAC 1A |
49 |
|
规格书 |
77DE | Box | Active | Europe | Wall Mount | Fixed Blade | 230VAC | 12VAC | 1A | 12 W | - | ITE (Commercial) | - | 0°C ~ 40°C | - | 3.23" L x 2.24" W x 1.93" H (82.0mm x 57.0mm x 49.0mm) | CE, GS, TUV | - |
|
WAU16-500AC/AC WALL MNT ADPT 16VAC 500MA |
50 |
|
规格书 |
WAU16 | Box | Active | North America | Wall Mount | Fixed Blade | 120VAC | 16VAC | 500mA | 8 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 1.89" L x 2.36" W x 3.15" H (48.0mm x 60.0mm x 80.0mm) | cUL, UL | - |
|

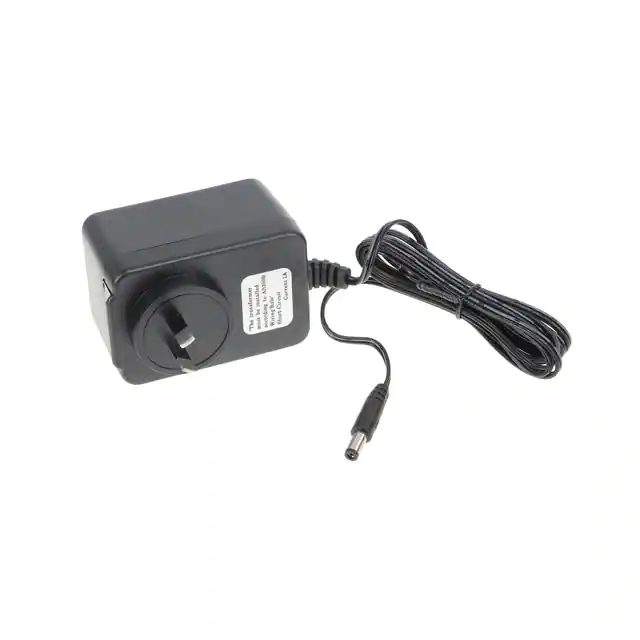

77DS-12-09AC/AC WALL MNT ADPT 9VAC 1.33A |
25 |
|
规格书 |
77DS | Box | Active | Australia | Wall Mount | Fixed Blade | 240VAC | 9VAC | 1.33A | 12 W | - | ITE (Commercial) | - | 0°C ~ 40°C | - | 3.23" L x 2.24" W x 1.93" H (82.0mm x 57.0mm x 49.0mm) | CE | - |
|
|
WAU16-400AC/AC WALL MNT ADPT 16VAC 400MA |
67 |
|
规格书 |
WAU16 | Box | Active | North America | Wall Mount | Fixed Blade | 120VAC | 16VAC | 400mA | 6 W | 500mW (Max) | ITE (Commercial) | 80% | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 1.61" L x 1.97" W x 2.76" H (41.0mm x 50.0mm x 70.0mm) | cUL, UL | - |
|
WAU12-1000AC/AC WALL MNT ADAPTER 12VAC 1A |
69 |
|
规格书 |
WAU12 | Box | Active | North America | Wall Mount | Fixed Blade | 120VAC | 12VAC | 1A | 12 W | 500mW (Max) | ITE (Commercial) | 80% | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 1.61" L x 1.97" W x 2.76" H (41.0mm x 50.0mm x 70.0mm) | cUL, UL | - |
|
|
WAU12-2000AC/AC WALL MNT ADAPTER 12VAC 2A |
57 |
|
规格书 |
WAU12 | Box | Active | North America | Wall Mount | Fixed Blade | 120VAC | 12VAC | 2A | 24 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 1.89" L x 2.36" W x 3.15" H (48.0mm x 60.0mm x 80.0mm) | cUL, UL | - |
|
WAU20-500AC/AC WALL MNT ADPT 20VAC 500MA |
21 |
|
规格书 |
WAU20 | Box | Active | North America | Wall Mount | Fixed Blade | 120VAC | 20VAC | 500mA | 10 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 1.89" L x 2.36" W x 3.15" H (48.0mm x 60.0mm x 80.0mm) | cUL, UL | - |
|
WAU060-2000-SGAC/AC WALL MNT ADAPTER 6VAC 2A |
10 |
|
规格书 |
WAU | Bulk | Active | North America | Wall Mount | Fixed Blade | 120VAC | 6VAC | 2A | 12 W | 210mW (Max) | ITE (Commercial) | 83% | -10°C ~ 40°C | Screw Terminal | 1.89" L x 2.36" W x 3.15" H (48.0mm x 60.0mm x 80.0mm) | cULus | - |
|
|
WAU12-500AC/AC WALL MNT ADPT 12VAC 500MA |
31 |
|
规格书 |
WAU12 | Box | Active | North America | Wall Mount | Fixed Blade | 120VAC | 12VAC | 500mA | 6 W | 500mW (Max) | ITE (Commercial) | 80% | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 1.61" L x 1.97" W x 2.76" H (41.0mm x 50.0mm x 70.0mm) | cUL, UL | - |
|

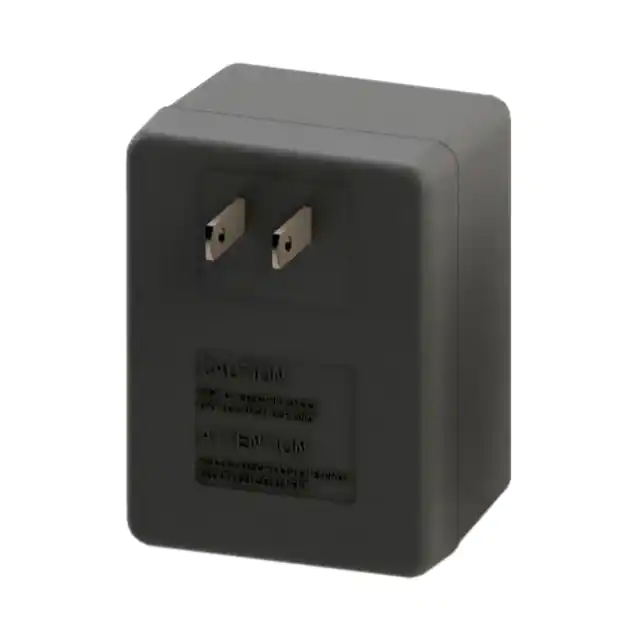

WAU090-1200AC/AC WALL MNT ADPT 9VAC 1.2A |
22 |
|
规格书 |
WAU | Bulk | Active | North America | Wall Mount | Fixed Blade | 120VAC | 9VAC | 1.2A | 12 W | 210mW (Max) | ITE (Commercial) | 83% | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 1.89" L x 2.36" W x 3.15" H (48.0mm x 60.0mm x 80.0mm) | cULus | - |
|
WAU240-500AC/AC WALL MNT ADPT 24VAC 500MA |
59 |
|
规格书 |
WAU240 | Bulk | Active | North America | Wall Mount | Fixed Blade | 120VAC | 24VAC | 500mA | 12 W | 210mW (Max) | ITE (Commercial) | Level VI | -10°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 1.89" L x 2.36" W x 3.15" H (48.0mm x 60.0mm x 80.0mm) | cULus | - |
|
BPD2EAC/AC WALL MNT ADPT 12VAC 1.67A |
46 |
|
规格书 |
BPD2x | Bulk | Active | North America | Wall Mount | Fixed Blade | 120VAC | 12VAC | 1.67A | 20 W | - | ITE (Commercial) | - | - | Screw Terminal | 2.13" L x 2.44" W x 2.75" H (54.1mm x 62.0mm x 70.0mm) | CSA, UL | - |
|
|
BPD2FAC/AC WALL MNT ADPT 16VAC 1.25A |
12 |
|
规格书 |
BPD2x | Bulk | Active | North America | Wall Mount | Fixed Blade | 120VAC | 16VAC | 1.25A | 20 W | - | ITE (Commercial) | - | - | Screw Terminal | 2.13" L x 2.44" W x 2.75" H (54.1mm x 62.0mm x 70.0mm) | CSA, UL | - |
|
|
BPD2FFAC/AC WALL MNT ADPT 18VAC 1.11A |
7 |
|
规格书 |
BPD2x | Bulk | Active | North America | Wall Mount | Fixed Blade | 120VAC | 18VAC | 1.11A | 20 W | - | ITE (Commercial) | - | - | Screw Terminal | 2.13" L x 2.44" W x 2.75" H (54.1mm x 62.0mm x 70.0mm) | CSA, UL | - |
|
|
WAU12-2500AC/AC WALL MNT ADPT 12VAC 2.5A |
53 |
|
规格书 |
WAU12 | Box | Active | North America | Wall Mount | Fixed Blade | 120VAC | 12VAC | 2.5A | 30 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 2.17" L x 2.68" W x 3.35" H (55.0mm x 68.0mm x 85.0mm) | cUL, UL | - |
|
|
WAU16-2400AC/AC WALL MNT ADPT 16VAC 2.4A |
10 |
|
规格书 |
WAU16 | Box | Active | North America | Wall Mount | Fixed Blade | 120VAC | 16VAC | 2.4A | 38 W | - | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 2.17" L x 2.68" W x 3.35" H (55.0mm x 68.0mm x 85.0mm) | cUL, UL | - |
|
|
WAU060-2000AC/AC WALL MNT ADAPTER 6VAC 2A |
11 |
|
规格书 |
WAU | Bulk | Active | North America | Wall Mount | Fixed Blade | 120VAC | 6VAC | 2A | 12 W | 210mW (Max) | ITE (Commercial) | 83% | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 1.89" L x 2.36" W x 3.15" H (48.0mm x 60.0mm x 80.0mm) | cULus | - |
|
BPE2GAC/AC WALL MNT ADPT 24VAC 1.67A |
86 |
|
规格书 |
BPE2x | Bulk | Active | North America | Wall Mount | Fixed Blade | 120VAC | 24VAC | 1.67A | 40 W | - | ITE (Commercial) | - | - | Screw Terminal | 2.13" L x 2.80" W x 3.58" H (54.1mm x 71.1mm x 91.0mm) | CSA, UL | - |
|
BPE2EAC/AC WALL MNT ADPT 12VAC 3.33A |
16 |
|
规格书 |
BPE2x | Bulk | Active | North America | Wall Mount | Fixed Blade | 120VAC | 12VAC | 3.33A | 40 W | - | ITE (Commercial) | - | - | Screw Terminal | 2.13" L x 2.80" W x 3.58" H (54.1mm x 71.1mm x 91.0mm) | CSA, UL | - |
